Description

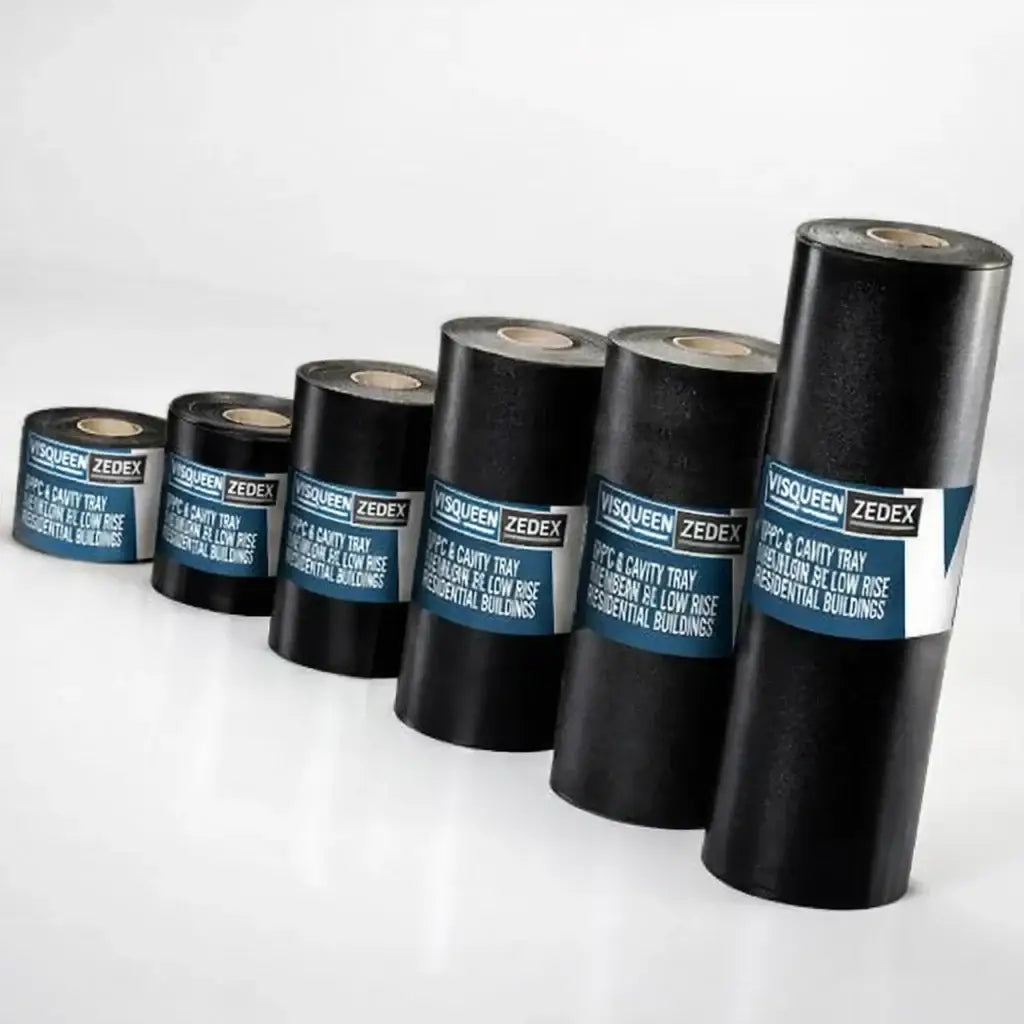

Visqueen Zedex CPT High Performance DPC – Gas Resistant DPC & Cavity Tray System
The Visqueen Zedex CPT High Performance DPC is a 0.8mm co-polymer thermoplastic damp proof course and cavity tray system, designed to prevent rising damp, water ingress, and ground gas penetration within wall constructions.
Manufactured from a blend of thermoplastic polymers and elastomers, this flexible and durable DPC provides long-term protection in both residential and commercial buildings, including use in NHBC-regulated sites and radon-affected areas.
Key Features & Benefits:
✔ Damp Proof Protection – Prevents rising damp within wall structures
✔ Gas Resistant – Suitable for NHBC Amber 1 gas protection systems
✔ Radon Compatible – Works with radon membranes for full protection
✔ High Flexibility – Easy to form into cavity trays and detailing
✔ BBA Certified – Independently tested and approved
✔ Wide Size Range – Available from 100mm to 1400mm widths
✔ Preformed Units Available – Simplifies complex detailing and corners
Ideal Applications:
✔ Internal walls to prevent rising damp
✔ External cavity walls (masonry, timber frame, steel frame)
✔ Cavity tray systems (built-in or surface fixed)
✔ Beam and block floor sleeper walls
✔ Gas protection systems (NHBC Amber 1)
✔ Radon protection systems
Installation Guidelines:
Install in accordance with BS 8215, PD 6697, and BS 8000
Lay on an even bed of wet mortar (not dry)
Ensure full wall thickness coverage including finishes
For cavity trays:
- Build-in or surface fix to inner leaf
- Use primer and butyl tape for surface fixing
Seal laps:
- Minimum 100mm overlap
- Bond using double-sided butyl tape
Use preformed units for corners and complex detailing
⚠ Do not install below 5°C
⚠ Must not be installed on dry bedded mortar
Product Specifications:
Thickness: 0.8mm
Roll Length: 20m
Widths: 100mm – 1400mm
Material: Co-polymer thermoplastic (CPT)
Colour: Black
Mass: approx. 750 g/m²
Standards & Compliance:
BBA Certified (94/3059)
NHBC compliant (Amber 1 applications)
Conforms to BR 211:2023
EN 14909:2012 Type A compliant
ISO 9001 / 14001 / 45001 certified
Frequently Asked Questions
What is Zedex CPT DPC used for?
It is used to prevent rising damp and water ingress in walls and can also act as a gas-resistant DPC.
Can it be used as a cavity tray?
Yes, it can be formed into built-in or surface-fixed cavity trays.
Is it suitable for gas protection?
Yes, it is suitable for NHBC Amber 1 gas protection systems and radon areas.
How are joints sealed?
Using minimum 100mm overlaps bonded with double-sided butyl tape.
Can it be used in timber or steel frame walls?
Yes, it is suitable for masonry, timber frame, and steel frame constructions.
