Description

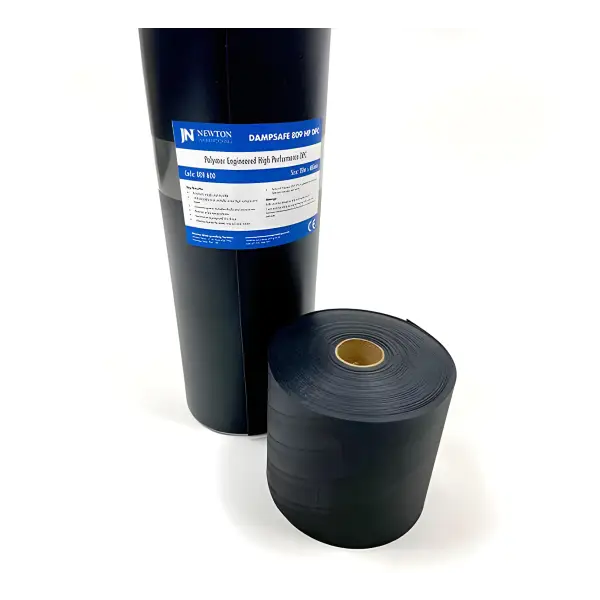

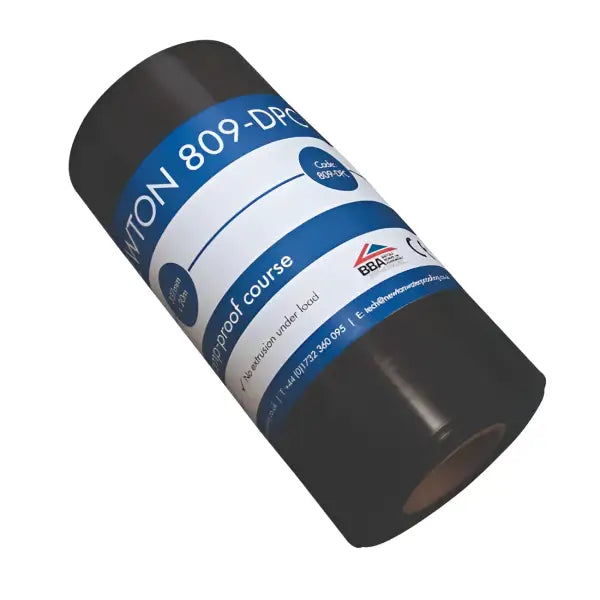

High Performance Damp-Proof Course
A high-performance polymeric, radon rated, DPC which will not extrude under load, up to the point of compressive failure of the wall. It will also not adversely affect the ability of a properly designed and built wall to sustain and transmit compression.
Available in eight widths from 100 to 900 mm.
DampSafe 809-HP DPC is compatible with all commonly used building materials and is suitable for horizontal, vertical and stepped damp proof courses, including cavity trays, in cavity or solid masonry walls, and is also suitable for extending the floor membrane through internal and spine walls within our Newton CDM System.
Key Benefits
- Extremely tough and durable
- Will not deform or extrude under high compressive loads
- Complete system includes cloaks and accessories
- Flexible at low temperatures
- Resistant to shrinkage
- Effective barrier to water and water vapour
- Bond of DampSafe 809-HP DPC is greater than the bond between mortar and brick
Typical Applications
- Horizontal, vertical and stepped damp-proof courses
- As part of the Newtonite Damp Proofing System when used in conjunction with Newton System 800 damp proofing membranes
- As part of the Newton CDM Waterproofing System when used in conjunction with Newton System 500 waterproofing membranes
Suitable Substrate
- Brick & Block
- Stone
- Concrete
- High load insulated wall courses such as Marmox Thermoblock and Foamglas Perinsul
Product Data
Code: 809 followed by roll width in mm: 100, 150, 115, 300, 337.5, 450, 600, 900.
Packaging: Roll length 20m
Colour: Black
Area: From 2m² - 18m² dependent on membrane width
Downloads
Technical Data
| Installed Performance | Result |
|
Resistance to static load (10 mm steel ball) |
20kg |
|
Shear resistance of joints – longitudinal |
100 N/mm2 |
|
Shear resistance of joints – traverse |
250 N/mm2 |
|
Durability (Alkali, Annex C – 50% elongation) |
Pass |
|
Elongation at break – longitudinal |
810% |
| Elongation at break – traverse |
850% |
| Resistance to tearing (nail shank) – longitudinal | 170N |
| Resistance to tearing (nail shank) – traverse |
180N |
| Flexibility at low temperatures | ≤40oC |
| Durability against heat ageing – 60 kPa |
Pass |
| Radon permeability | 18 x 10(-12) m/s |
| Radon transmittance | 21 x 10(-12) m/s |
| CO2 permeability | 1.59 x 10(-12) m2/s/Pa |
| Water vapour diffusion resistance – Sd value | 350m |
| Reaction to fire (Euroclass) | E |
