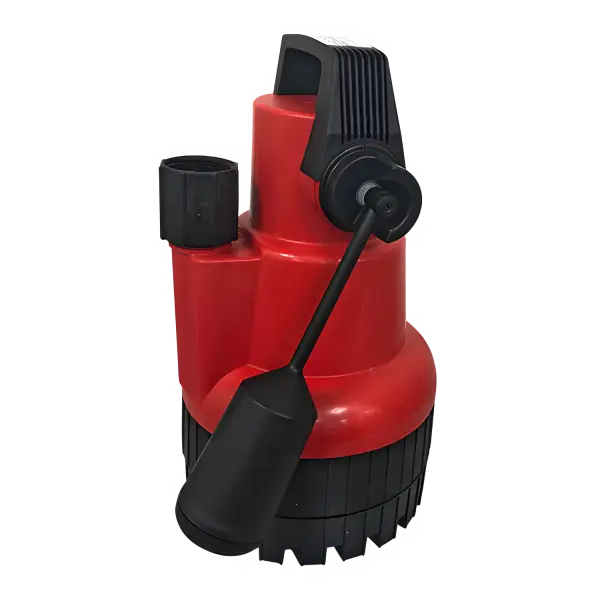

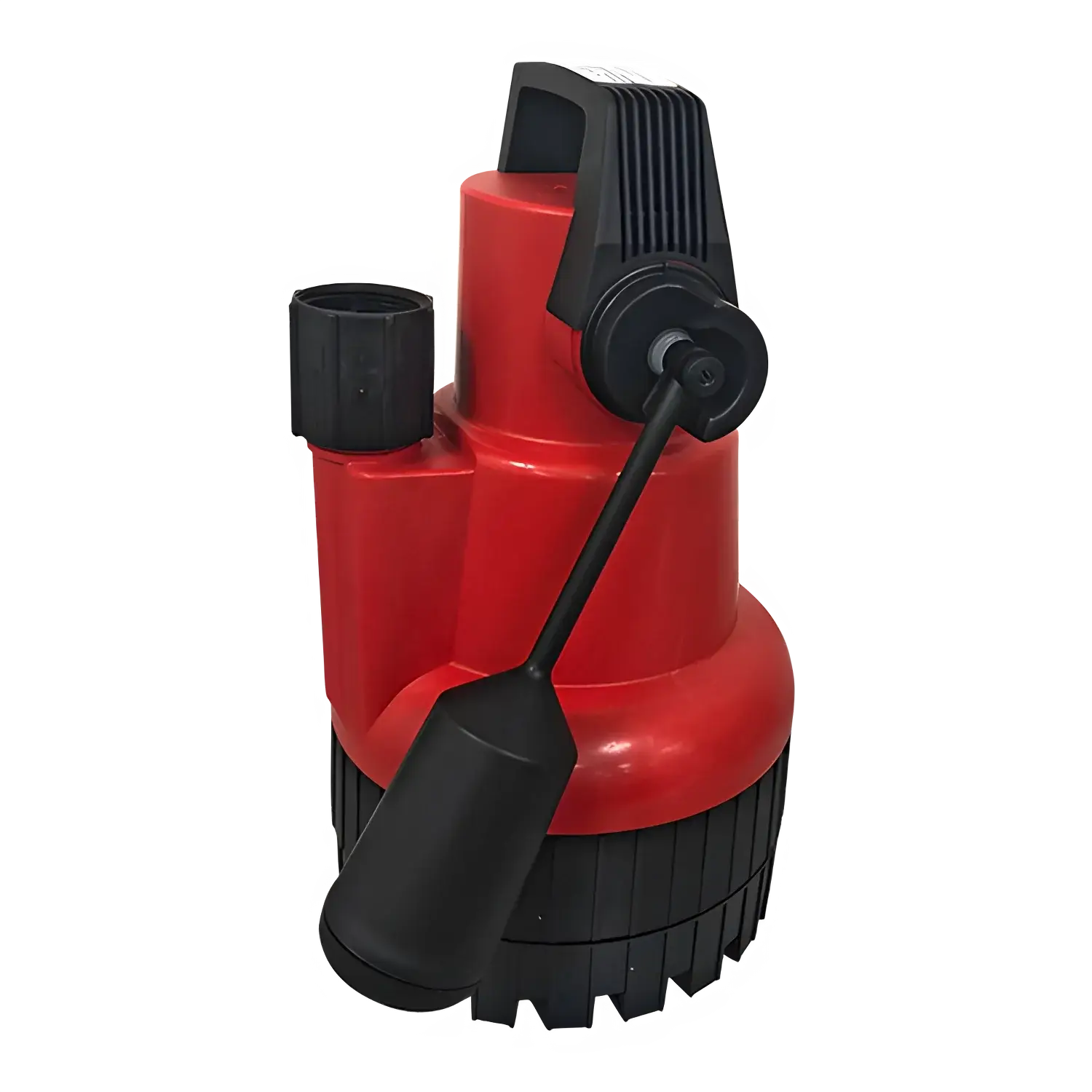

Edincare EA33 Automatic Submersible Pump (240V, 5m Cable)
The Edincare EA33-1-A-5-1.25-OF is an automatic submersible pump designed for the pumping of ground, surface, storm, and grey water in drainage applications. It is supplied as a 240V single-phase pump with a pre-fitted 5 metre power cable for straightforward installation.
The pump uses a vortex impeller and optimised hydraulics to support clog-resistant operation in demanding environments. An adjustable magnetic float switch provides variable level control, and a locking disk enables conversion to external or manual control where required.
Automatic Level Control
A magnetic float switch fitted in polypropylene provides automatic start and stop control. The float travel can be adjusted to suit site conditions, supporting flexible setup in sump chambers and drainage installations.
Key Features
- 240V single-phase automatic submersible pump
- Pre-fitted 5 metre power cable
- Free-standing installation with no mounting bracket required
- Internal thermal protection for motor safety
- Vortex impeller design to assist solids handling and clog resistance
- Adjustable magnetic float switch with maximum travel stop
- Locking disk for conversion to external or manual control systems
- GRP pump and discharge casings
- Nickel steel motor shaft
- Noryl impeller and casing cover
Typical Applications
- Groundwater management
- Stormwater drainage
- Grey water removal
- Surface water control for residential and commercial properties
Technical Overview
| Model | EA33-1-A-5-1.25-OF |
| Supply | 240V single phase |
| Cable length | 5 m |
| Control | Magnetic float switch with variable level control |
| Impeller type | Vortex |
Downloads
Manufacturer & Support
For duty selection support, compatibility checks, or advice on external control integration, contact our technical team.
