Description

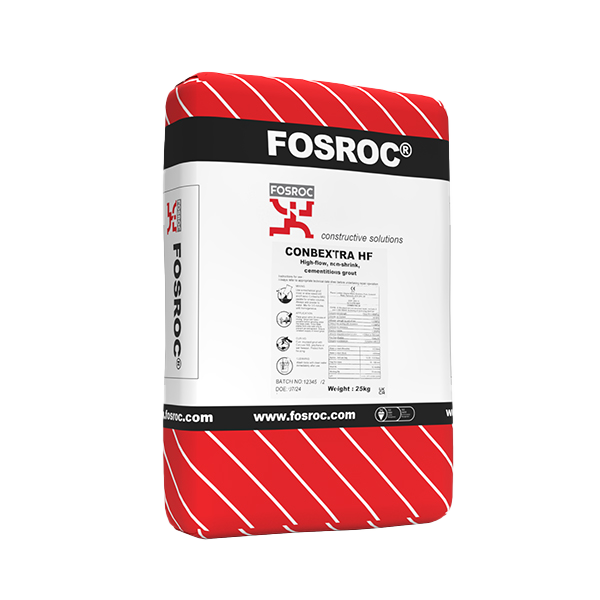

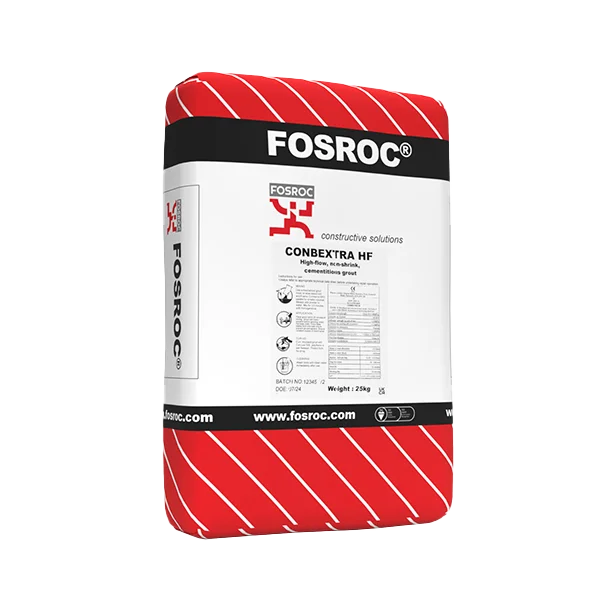

Fosroc Conbextra HF High Flow Non-Shrink Cementitious Grout
Fosroc Conbextra HF is a high-flow, non-shrink cementitious grout specifically designed for free-flow grouting applications where exceptional flowability, high early strength and long-term durability are required. Suitable for gap thicknesses from 10mm to 100mm, it is ideal for large baseplates, precast concrete connections, anchoring applications and situations where access for pouring is restricted.
Supplied as a pre-blended, ready-to-use dry powder, Conbextra HF requires only the addition of clean water on site to produce a highly flowable grout that will not segregate or bleed. The advanced formulation combines Portland cement, graded fillers and performance-enhancing additives to achieve excellent strength development, controlled expansion and reliable performance in demanding structural applications.
Conforming to BS EN 1504-3 Class R4 and BS EN 1504-6 requirements, Conbextra HF is suitable for both structural repair and anchoring of reinforcing steel bars. Its pumping capability and excellent flow characteristics make it particularly suitable for large-scale industrial and infrastructure projects.
Key Features & Benefits
- High-flow cementitious grout
- Non-shrink formulation
- BS EN 1504-3 Class R4 compliant
- BS EN 1504-6 compliant
- Suitable for anchoring reinforcing steel bars
- Highly flowable consistency
- High early strength development
- Chloride free
- Suitable for pumping applications
- Excellent long-term durability
- Will not segregate or bleed
- Controlled expansion system
- Suitable for restricted access grouting
- High bond strength
- Excellent freeze-thaw resistance
- Fire rated Class A1 Non-Combustible
Applications
- Large stanchion baseplates
- Structural baseplate grouting
- Precast concrete panel joints
- Pumped grouting applications
- Restricted access grouting
- Reinforcing steel bar anchoring
- Tie bar installation
- Machine base grouting
- Structural bearing plates
- Infrastructure projects
- Industrial construction
- Civil engineering works
Technical Information
- Product Type: High-flow non-shrink cementitious grout
- Classification: BS EN 1504-3 Class R4
- Classification: BS EN 1504-6
- Colour: Cement Grey
- Pack Size: 25kg
- Application Thickness: 10mm – 100mm
- Water Addition (Flowable): 4.5 litres per 25kg bag
- Water Addition (Fluid): 4.8 litres per 25kg bag
- Yield (Flowable): 13.25 litres per bag
- Yield (Fluid): 13.5 litres per bag
- Fresh Wet Density: 2130kg/m³
- Efflux Time: 26–35 seconds
- Initial Set: 6 hours
- Fire Rating: Class A1 Non-Combustible
- Shelf Life: 12 months
Performance Data
Compressive Strength
- 1 Day: 22 MPa
- 7 Days: 55 MPa
- 28 Days: 70 MPa
Bond Strength
- 2.6 MPa
Elastic Modulus
- 32.7 GPa
Flexural Strength
- 5.5 MPa at 28 Days
Tensile Strength
- 3.7 MPa at 28 Days
Pull-Out Performance
- 0.44mm Dry Test at 75kN
- 0.43mm Wet Test at 75kN
Frequently Asked Questions
What is Fosroc Conbextra HF used for?
Conbextra HF is used for free-flow grouting applications including baseplates, precast concrete joints, reinforcing bar anchoring and pumped grouting projects.
What thickness can Conbextra HF be applied at?
It can be applied in sections from 10mm up to 100mm thick in a single pour.
Can Conbextra HF be pumped?
Yes. The grout has been specifically designed for pumped grouting applications and restricted access installations.
Does Conbextra HF shrink during curing?
No. It is a non-shrink grout formulated with a controlled expansion system.
What compressive strength does it achieve?
Conbextra HF achieves 22 MPa after 1 day, 55 MPa after 7 days and 70 MPa after 28 days.
Is it suitable for anchoring reinforcement bars?
Yes. It complies with BS EN 1504-6 for anchoring reinforcing steel bars.
