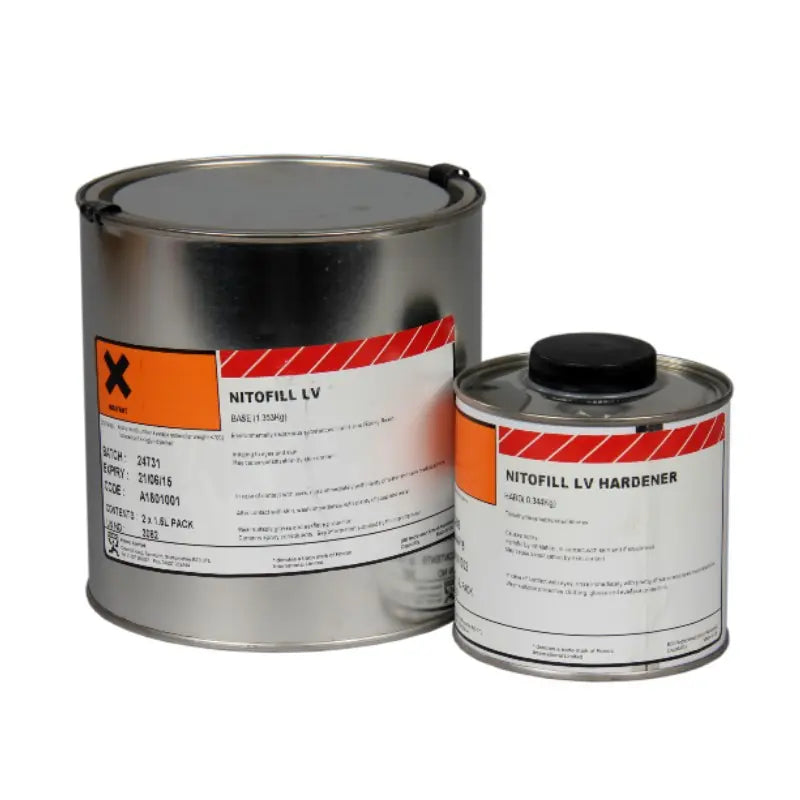

Fosroc Nitofill LV 1.5L

Fosroc Nitofill LV / TH Epoxy Resin Injection Grout

Fosroc Nitofill LV and Nitofill TH are high-performance two-component epoxy resin injection grouts designed for the structural repair of cracked concrete and masonry. Developed for crack injection applications, both products restore structural integrity by bonding cracked sections together with exceptional strength, durability and chemical resistance.

Nitofill LV is a low viscosity epoxy resin designed to penetrate and fill cracks from 0.3mm to 9mm wide, making it ideal for fine crack injection where maximum penetration is required. Nitofill TH is a thixotropic epoxy resin formulated for cracks between 0.5mm and 9mm wide and is particularly suitable for open-ended or incompletely sealed cracks where resin drainage needs to be minimised.

Both systems provide outstanding adhesion to dry and damp concrete, high compressive and tensile strength, low creep characteristics and excellent resistance to water, frost, oils, chemicals, acids and alkalis. Manufactured in accordance with BS EN 1504-5 requirements for concrete injection, they offer a professional solution for structural crack repair in commercial, industrial and civil engineering applications.

Key Features & Benefits

• Structural crack repair system
• BS EN 1504-5 compliant
• High strength epoxy resin injection grout
• Excellent adhesion to dry and damp concrete
• Non-shrink formulation
• Low creep characteristics
• High compressive strength
• High tensile strength
• High flexural strength
• Resistant to water and frost
• Excellent chemical resistance
• Resistant to oils, grease and fats
• Durable long-term repair
• Suitable for concrete and masonry
• Easy mixing and application

Nitofill LV Benefits

• Low viscosity formulation
• Maximum crack penetration
• Suitable for fine cracks from 0.3mm
• Excellent flow properties

Nitofill TH Benefits

• Thixotropic formulation
• Reduced resin drainage
• Suitable for open-ended cracks
• Ideal where sealing is difficult

Applications

• Structural crack injection
• Concrete crack repair
• Masonry crack repair
• Bridge repairs
• Concrete wall repairs
• Structural reinstatement
• Industrial concrete repairs
• Civil engineering projects
• Water retaining structures
• Basement repairs
• Car park repairs
• Concrete slab repairs
• Reinforced concrete repairs
• Crack sealing and strengthening

Technical Information

Nitofill LV

• Product Type: Low viscosity epoxy injection grout
• Crack Width Range: 0.3mm to 9mm
• Compressive Strength: 93 MPa at 7 days
• Tensile Strength: 47 MPa at 7 days
• Pot Life: 20 minutes at 20°C
• Packaging: 3 litre pack

Nitofill TH

• Product Type: Thixotropic epoxy injection grout
• Crack Width Range: 0.5mm to 9mm
• Compressive Strength: 88 MPa at 7 days
• Tensile Strength: 29 MPa at 7 days
• Pot Life: 20 minutes at 20°C
• Packaging: 1 litre pack

General Properties

• Application Temperature: +5°C to +25°C
• Service Temperature: Up to +35°C continuous
• Non-Volatile Content: >95%
• Glass Transition Temperature: >40°C
• Shelf Life: 18 months
• Colour: Amber epoxy resin

Frequently Asked Questions

What is Fosroc Nitofill LV used for?

Nitofill LV is used for injecting fine cracks in concrete and masonry from 0.3mm to 9mm wide where maximum resin penetration is required.

What is the difference between Nitofill LV and Nitofill TH?

Nitofill LV is a low viscosity resin for fine crack penetration, whilst Nitofill TH is a thixotropic resin designed to reduce drainage in open-ended or difficult-to-seal cracks.

Can Nitofill be used on damp concrete?

Yes. Both Nitofill LV and Nitofill TH achieve excellent adhesion to both dry and damp concrete substrates.

Is Nitofill suitable for structural repairs?

Yes. The system is specifically designed for structural crack repair and reinstatement of cracked concrete and masonry.

What crack sizes can be repaired?

Nitofill LV repairs cracks from 0.3mm to 9mm wide, whilst Nitofill TH repairs cracks from 0.5mm to 9mm wide.

Is the cured resin resistant to chemicals?

Yes. Both products offer excellent resistance to oils, grease, fats, water, frost, most chemicals, mild acids and alkalis.

Downloads

Data sheet
