Description

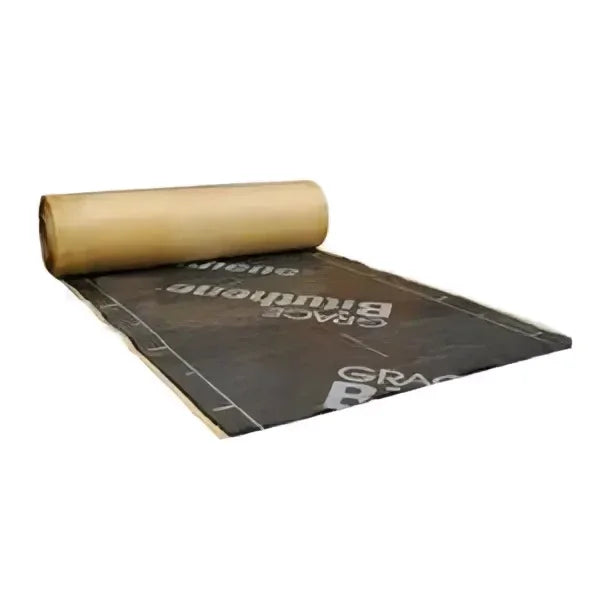

BITUTHENE® GP Self-Adhesive Waterproof Membrane
BITUTHENE® GP is a high-performance self-adhesive rubber bitumen waterproof membrane designed to provide reliable below-ground waterproofing for low-risk applications. Manufactured from a durable high-density polyethylene (HDPE) carrier bonded to a flexible rubber/bitumen adhesive layer, it creates a continuous waterproof barrier that protects concrete and masonry structures from moisture ingress and hydrostatic pressure up to 1 metre. The cold-applied system eliminates the need for naked flames or torch-on equipment, making installation faster, safer and more convenient on site.
Ideal for foundations, retaining walls, basement walls and other below-ground structures, BITUTHENE® GP offers excellent flexibility to accommodate minor settlement and shrinkage while maintaining a durable waterproof seal. The membrane is fully compatible with BITUTHENE® LM detailing compound, Primer B1, Protection 03 boards and HYDRODUCT® drainage systems, creating a complete waterproofing solution for residential and commercial construction projects.
Key Benefits
- Self-adhesive rubber bitumen waterproof membrane
- Durable HDPE carrier film
- Cold-applied installation with no naked flames
- Suitable for low-risk waterproofing applications
- Resists hydrostatic pressure up to 1 metre
- Flexible to accommodate minor settlement and shrinkage
- Strong self-adhesive lap joints
- Excellent resistance to dilute acids and alkalis
- Easy to install with lightweight 25m rolls
- Compatible with BITUTHENE® accessories and drainage systems
- Suitable for concrete and masonry substrates
Applications
- Foundation waterproofing
- Basement wall waterproofing
- Retaining walls
- Below-ground structures
- Concrete waterproofing
- Masonry waterproofing
- Residential construction
- Commercial developments
- Structural waterproofing
- New-build waterproofing
Technical Information
- Product Type: Self-adhesive waterproof membrane
- Material: Rubber bitumen / HDPE
- Thickness: 1mm nominal
- Roll Size: 1m × 25m
- Coverage: 25m² per roll
- Roll Weight: 30kg
- Hydrostatic Resistance: Up to 1 metre water head
- Minimum Application Temperature: +5°C
- Minimum Side & End Lap: 50mm
- Compatible Primer: Primer B1
- Ancillary Products:
- BITUTHENE® LM
- Protection 03 Board
- HYDRODUCT® Drainage Membranes
- Standard: EN 13967
Frequently Asked Questions
What is BITUTHENE® GP used for?
BITUTHENE® GP is designed for waterproofing below-ground concrete and masonry structures in low-risk applications, including foundations, retaining walls and basement walls.
How much water pressure can it withstand?
The membrane is designed for applications subject to hydrostatic pressure of up to 1 metre of water head.
Does BITUTHENE® GP require heat during installation?
No. It is a cold-applied self-adhesive membrane that requires no torch-on equipment or naked flames.
Can it be applied directly to concrete?
Yes. Concrete and masonry should be clean, dry, smooth and primed with Primer B1 where specified before membrane installation.
Can damaged areas be repaired?
Yes. Damaged sections can be repaired using an oversized membrane patch extending at least 100mm beyond the damaged area, firmly rolled into place.
