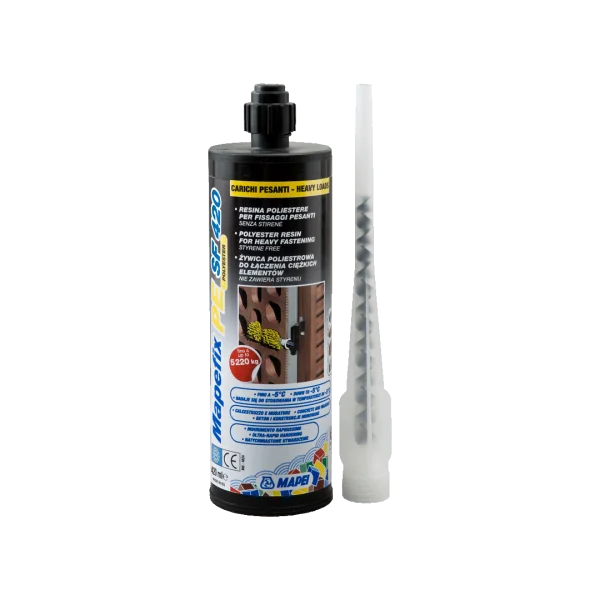

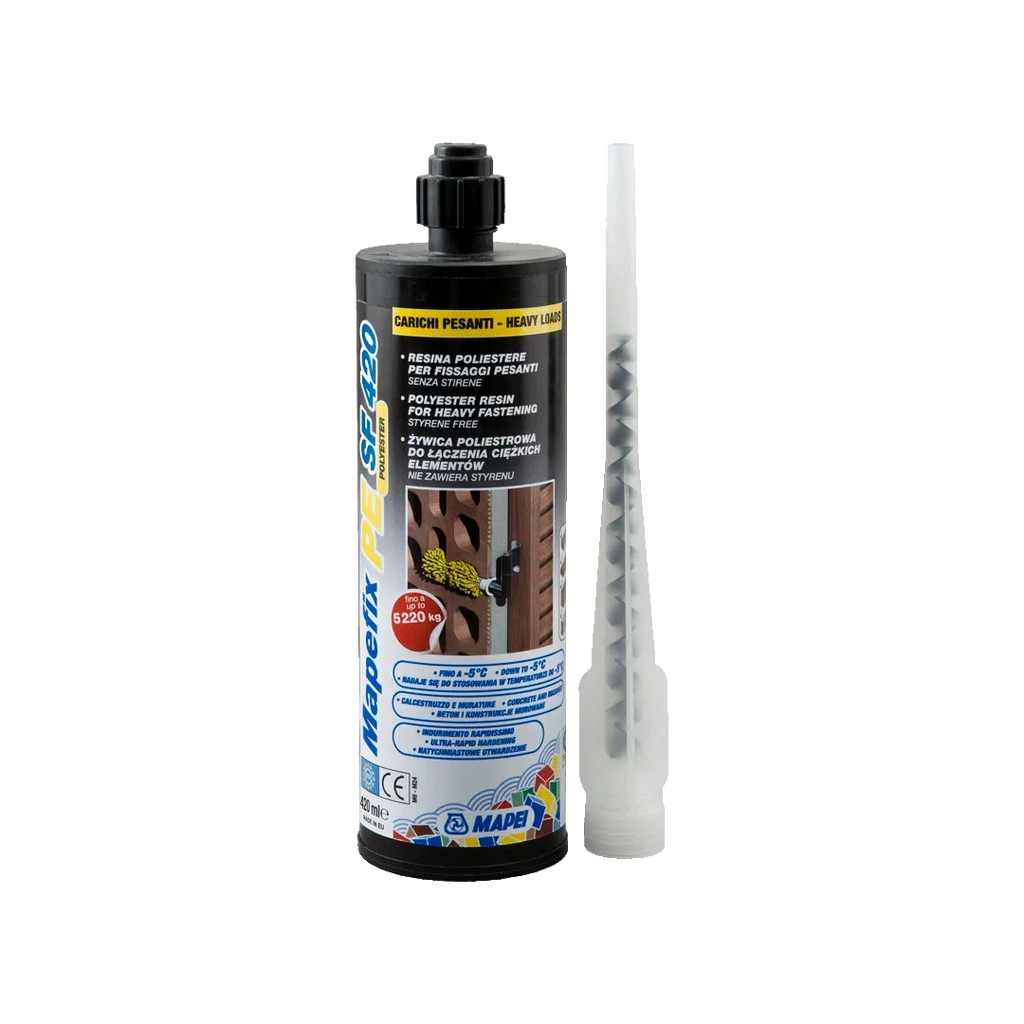

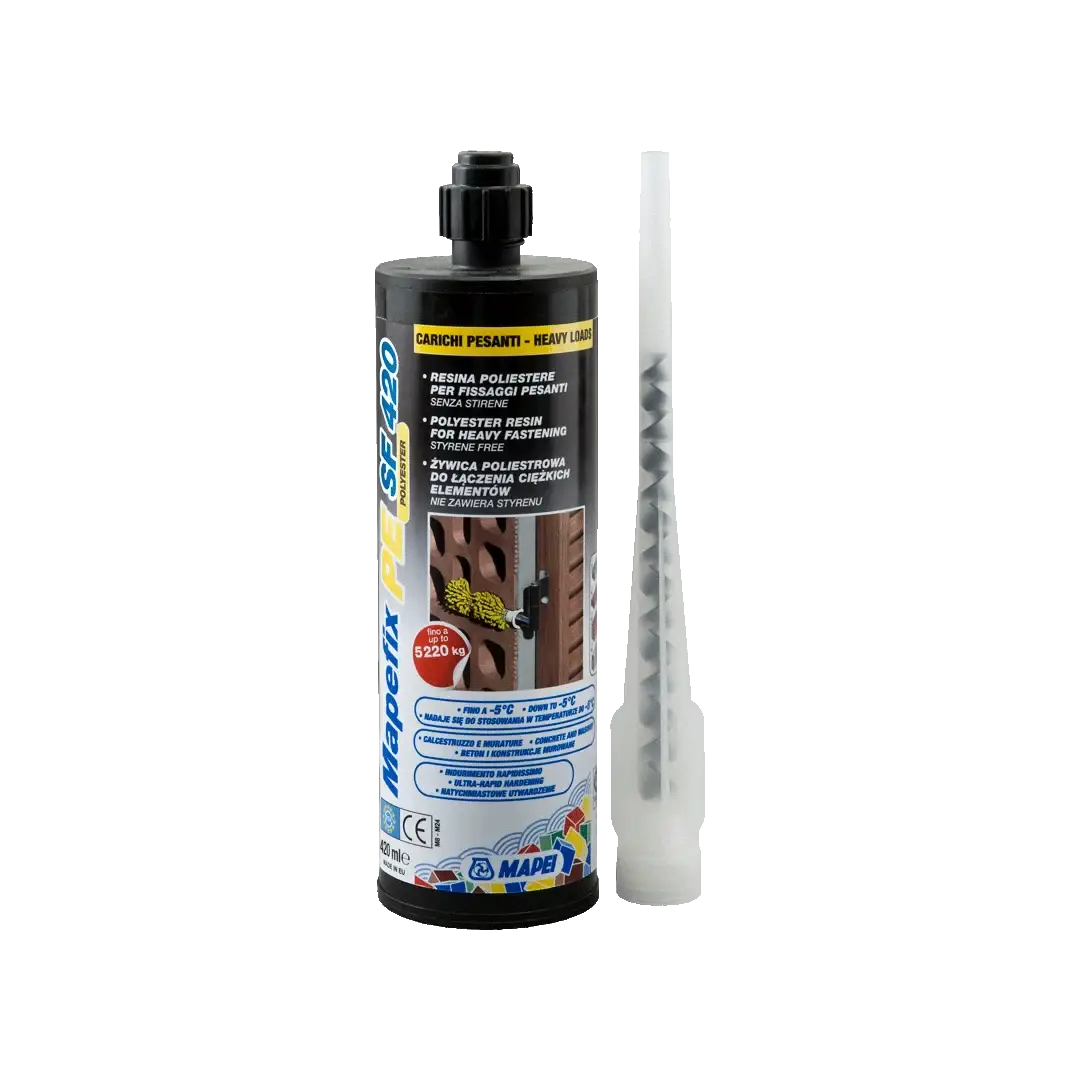

MAPEFIX PE SF – Styrene-Free Polyester Resin Chemical Fastener
MAPEFIX PE SF is a high-performance, styrene-free polyester resin chemical fastener designed for heavy load applications. It provides strong and reliable anchoring in a wide range of substrates, including full and perforated materials. With its fast curing time, MAPEFIX PE SF is ideal for use in construction, allowing quick installation and high load-bearing capacity. Suitable for both dry and damp holes, it works in various environmental conditions and offers a reliable solution for structural anchoring in a variety of building projects.
Key Features & Benefits
-
Fast Curing: Workability time of just 6 minutes at +20°C, with full hardening achieved in 45 minutes (dry substrate).
-
Versatile Applications: Suitable for dry and damp substrates, and works well in full or perforated materials.
-
Wide Range of Uses: Ideal for anchoring bars (M8 to M24) in concrete, masonry, and other substrates.
-
High Load Capacity: Offers excellent performance for heavy-duty anchoring applications.
-
Certified: CE marked and ETA Option 7 certified for fasteners in the compressive side.
-
Temperature Range: Works in a substrate temperature range of +5°C to +35°C.
Technical Data
-
Substrate Compatibility: Full or perforated substrates (concrete, masonry, etc.)
-

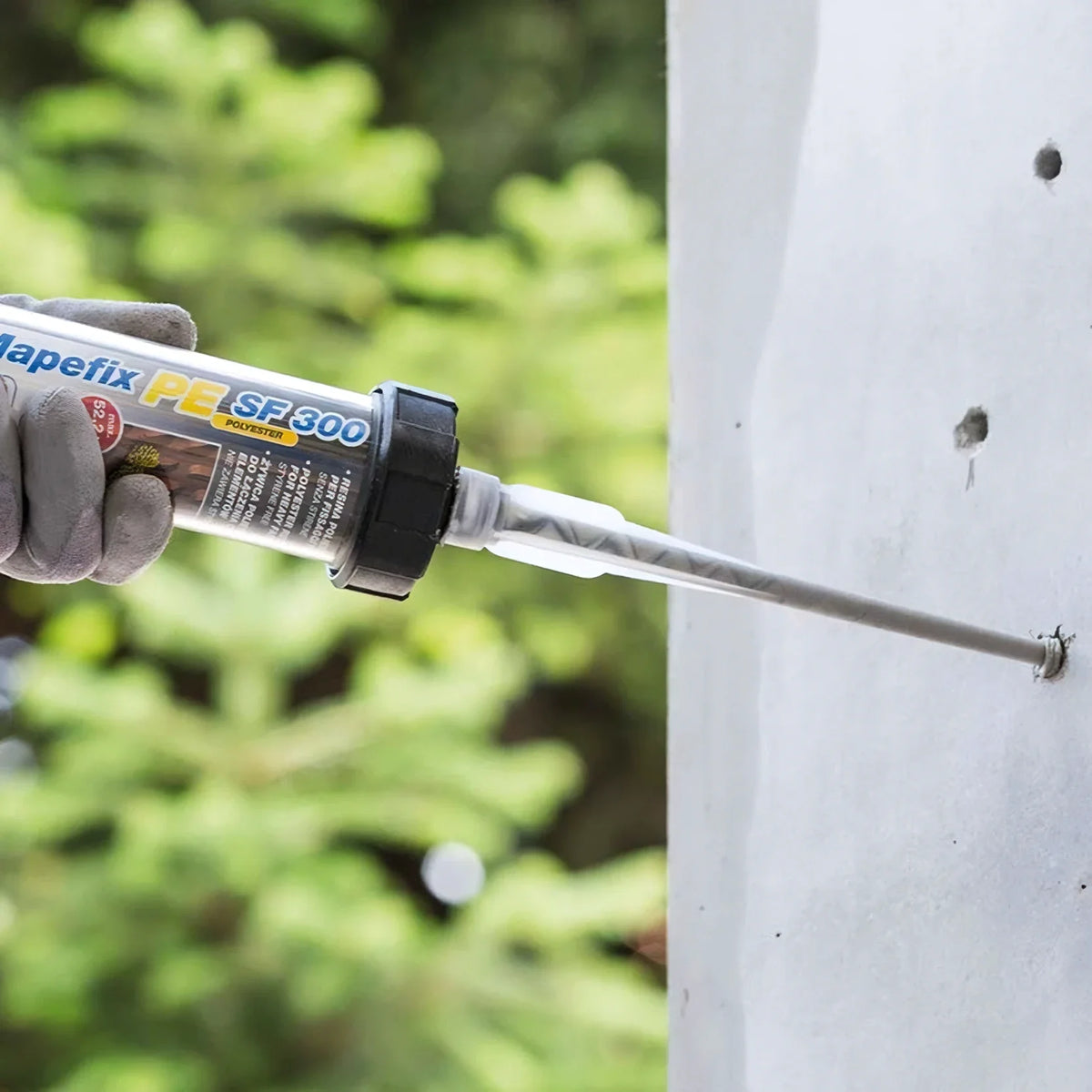

Application Method: Extrusion gun
-
Workability Time: 6 minutes at +20°C
-
Final Hardening Time: 45 minutes (dry substrate), 90 minutes (wet substrate)
-
Diameter of Bars: M8 to M24
-
Packaging: 300 ml, 420 ml cartridges
-
Storage: 12 months (300 ml) or 18 months (420 ml) at +5°C to +25°C
