Description
MAPEGUARD WP ADHESIVE – Two-Component Flexible Waterproofing Membrane Adhesive
MAPEI MAPEGUARD WP ADHESIVE is a two-component, rapid-drying, elastic cementitious adhesive designed for bonding and sealing MAPEGUARD WP 200 waterproofing membrane overlaps and associated system accessories.
Formulated with selected fine-grained aggregates, special admixtures and synthetic polymers in water dispersion, it produces a fluid, plastic consistency when the two components are mixed. It is suitable for application to both walls and floors and is an essential bonding and sealing product within the MAPEGUARD WP waterproofing system.

Typical Applications
- Bonding and sealing overlaps between MAPEGUARD WP 200 membrane sheets.
- Bonding and sealing MAPEGUARD ST sealing tape onto MAPEGUARD WP 200.
- Installing MAPEGUARD IC internal corner pieces.
- Installing MAPEGUARD EC external corner pieces.
- Bonding MAPEGUARD PC pipe collars around service penetrations.
- Bonding MAPEGUARD WP 200 to suitable substrates for LVT installations, following the relevant MAPEI system instructions.
- Waterproofing detailing in bathrooms, showers and wet rooms as part of the MAPEGUARD WP system.
Key Benefits
- Two-component formulation: Combines a cementitious powder component with a liquid polymer component.
- Flexible and elastic: Designed to accommodate the requirements of the MAPEGUARD waterproofing system.
- Rapid-drying: Provides a practical installation process for membrane overlaps and accessories.
- Strong bonding: Bonds and seals the membrane and compatible system components.
- Versatile application: Can be applied by brush, roller or a No. 3 notched trowel.
- Wall and floor use: Suitable for horizontal and vertical applications.
- Professional system component: Designed for use with MAPEGUARD WP membranes and accessories.
Mixing Instructions
MAPEGUARD WP ADHESIVE is supplied as two separate components which must be mixed together before application.
- Component A: 3.5kg powder.
- Component B: 3.15kg liquid.
- Mixing ratio: Component A to Component B = 1:0.9 by weight.
- Mixing method: Gradually add the powder component to the liquid component while mixing with a suitable mechanical mixer at low speed.
- Consistency: Fluid, plastic consistency when fully mixed.
- Pot life: Approximately 45 minutes at +23°C and 50% relative humidity.
Mix thoroughly until a uniform consistency is achieved. Follow the manufacturer's instructions regarding mixing and any permitted adjustments to workability.
Application Guidance

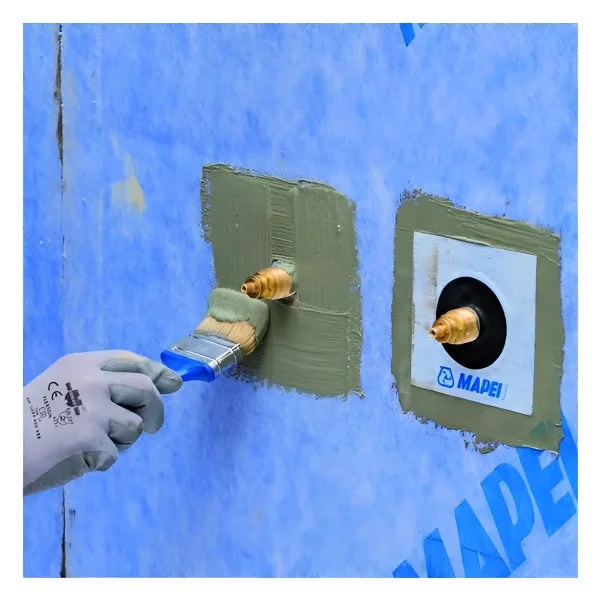

MAPEGUARD WP ADHESIVE can be applied by brush, roller or a No. 3 notched trowel, depending on the application.
- Apply the adhesive evenly to the required bonding area.
- Position membrane overlaps and accessories as quickly as possible while the adhesive is suitable for assembly.
- Fully embed the overlapping membrane sections and accessories into the adhesive.
- Ensure there are no trapped air pockets beneath the sealing materials.
- Press sealing tape and accessories firmly into place using the smooth side of a notched trowel or a suitable pressure roller.
- Take care not to damage the waterproofing membrane or accessories during installation.
- Protect the installed adhesive from water during the initial curing period in accordance with the manufacturer's instructions.
Coverage and Consumption
- MAPEGUARD WP 200 membrane overlaps: Approximately 100g per linear metre for a 50mm overlap.
- Bonding MAPEGUARD ST: Approximately 250g per linear metre for a 120mm overlap.
Actual consumption will depend on the application, substrate and installation conditions.
Technical Specifications
- Product: MAPEGUARD WP ADHESIVE.
- Product type: Two-component, elastic cementitious adhesive.
- Component A consistency: Powder.
- Component B consistency: Liquid.
- Mixed colour: Brown.
- Mixing ratio: 1:0.9 by weight (Component A : Component B).
- Mixed density: Approximately 1,350kg/m³.
- Application temperature: +5°C to +35°C.
- Pot life: Approximately 45 minutes at +23°C.
- Application tools: Brush, roller or No. 3 notched trowel.

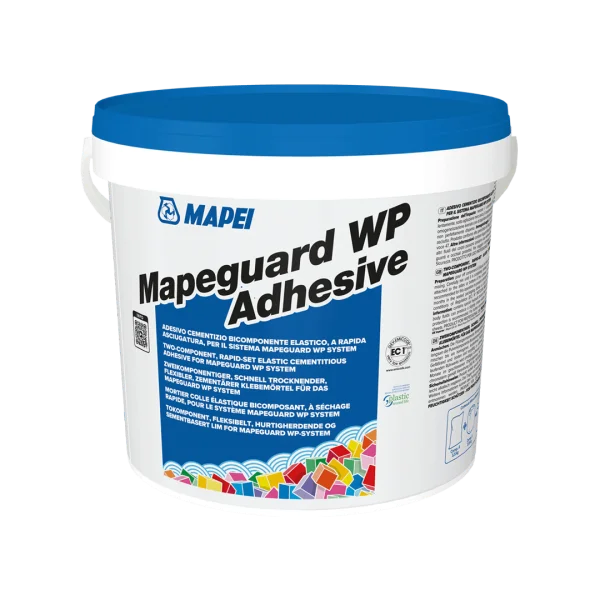

- Packaging: 6.65kg kit (3.5kg powder + 3.15kg liquid).
- Storage: 24 months for each component in original packaging, stored in a dry place.
Frequently Asked Questions
What is MAPEGUARD WP ADHESIVE used for?
It is used to bond and seal overlaps of MAPEGUARD WP 200 waterproofing membrane and to install associated accessories, including MAPEGUARD ST sealing tape, internal and external corners, and pipe collars.
Is MAPEGUARD WP ADHESIVE suitable for walls and floors?
Yes. MAPEI confirms that it is suitable for application to both wall and floor areas.
What is the mixing ratio?
The mixing ratio is 1 part Component A powder to 0.9 parts Component B liquid by weight. The complete 6.65kg kit contains 3.5kg of powder and 3.15kg of liquid.
How long is the working time after mixing?
The approximate pot life is 45 minutes at +23°C and 50% relative humidity. Temperature and site conditions can affect working time.
How much adhesive is required for membrane overlaps?
MAPEI gives an approximate consumption of 100g per linear metre for 50mm MAPEGUARD WP 200 overlaps and 250g per linear metre for bonding MAPEGUARD ST.
Can MAPEGUARD WP ADHESIVE be applied with a roller or brush?
Yes. It can be applied by brush, roller or a No. 3 notched trowel, depending on the application.
What is the application temperature range?
The manufacturer's technical data sheet specifies an application temperature range of +5°C to +35°C. The temperature must not fall below +5°C until final curing.
MAPEGUARD WP ADHESIVE Technical Documents
Download the manufacturer's technical and safety documentation for mixing instructions, application guidance and product handling information.
Clever Shield supplies MAPEI waterproofing membranes, adhesives and accessories throughout the UK. Always follow the manufacturer's technical documentation when selecting and applying products.
