Mapei Mapeheat Mesh – Self-Adhesive Electric Underfloor Heating System

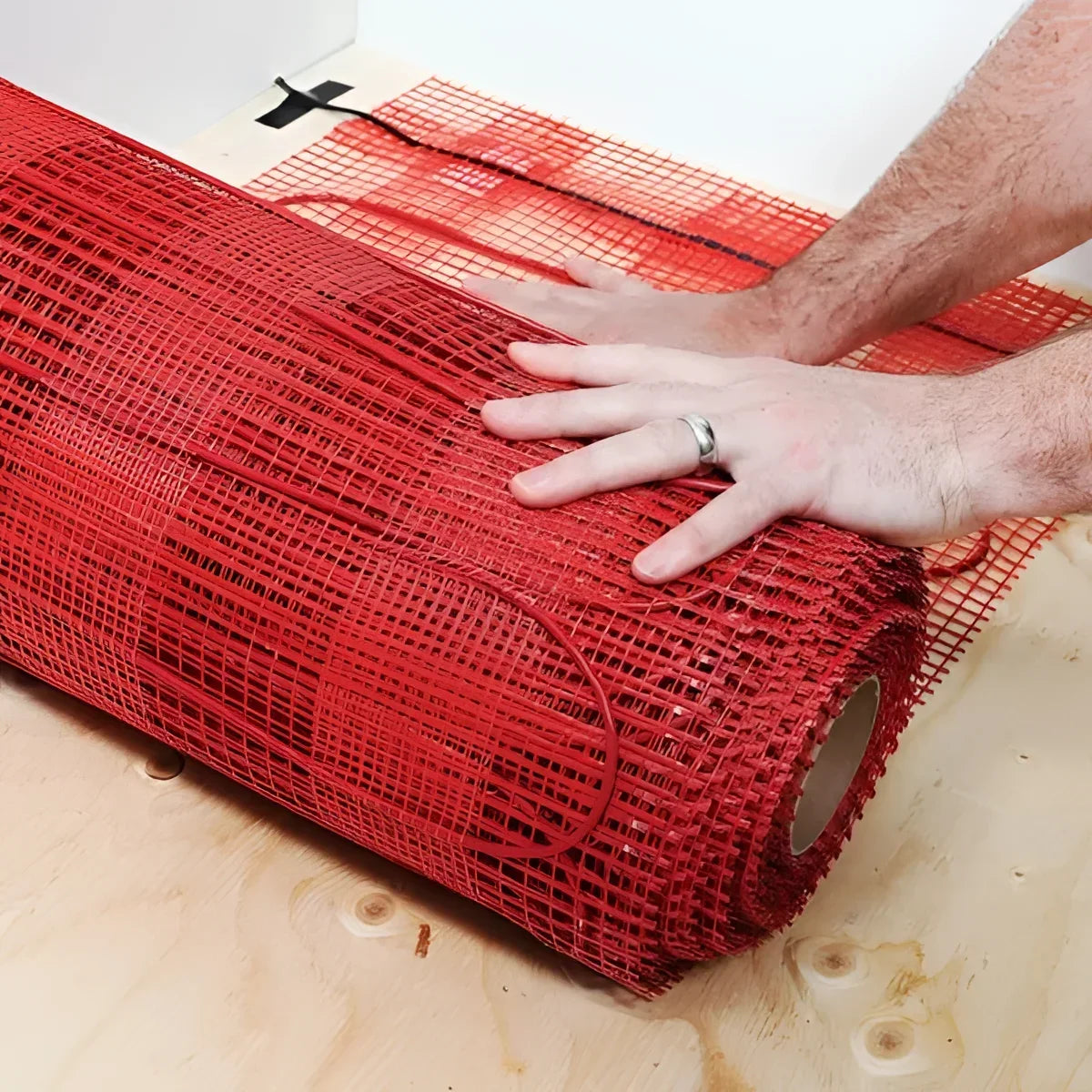

Mapei Mapeheat Mesh is a self-adhesive, pre-wired electric underfloor heating system designed to provide comfortable, evenly distributed heat beneath suitable floor coverings. The heating cable is factory-fitted to a self-adhesive fibreglass mesh, allowing the system to be positioned directly onto a prepared subfloor during installation.
Its low-profile construction makes Mapeheat Mesh particularly suitable for renovation projects where minimising additional floor height is important. The mesh can be configured on site to accommodate different room shapes, helping installers achieve the required heated floor area.
Available in 90W/m² and 160W/m² versions, Mapeheat Mesh can be installed beneath ceramic tiles, porcelain tiles and natural stone. The 90W/m² version is also suitable beneath specified laminate, engineered wood and luxury vinyl floor coverings when installed using the appropriate smoothing compound and floor construction.

Key Benefits
- Self-adhesive, pre-wired electric underfloor heating mesh.
- Factory-fitted heating cable for convenient installation.
- Available in 90W/m² and 160W/m² heating outputs.
- Low-profile construction for renovation projects.
- Can be configured on site to suit different room layouts.
- Suitable for ceramic, porcelain and natural stone tiles.
- 90W/m² version suitable for specified laminate, engineered wood and luxury vinyl flooring.
- Suitable for wet environments including showers and steam rooms.
- Twin-coil heating cable design that emits no measurable electromagnetic fields.
- Low-profile cold lead and mechanical splice joint.
Available Heating Versions
Mapeheat Mesh 90 – 90W/m²
The 90W/m² version is suitable for ceramic and porcelain tiles, natural stone, laminate, engineered wood and luxury vinyl flooring, subject to the manufacturer's floor construction requirements.
Mapeheat Mesh 160 – 160W/m²
The 160W/m² version is intended for suitable ceramic, porcelain and natural stone tile installations. Mapei does not recommend this version for wood or laminate flooring.
Suitable Applications
- Bathrooms and kitchens.
- Showers and steam rooms.
- Entrance halls and other interior living areas.
- Residential and commercial interior flooring projects.
- New installations and renovation projects.
Floor Covering Compatibility
Floor covering suitability depends on the selected heating output and the complete floor construction.
- Ceramic and porcelain tiles: 90W/m² and 160W/m² versions.
- Natural stone: 90W/m² and 160W/m² versions.
- Laminate flooring: 90W/m² version only.
- Engineered wood flooring: 90W/m² version only.
- Luxury vinyl flooring: 90W/m² version only.
For moisture-sensitive floor coverings such as engineered wood and luxury vinyl, Mapei specifies additional preparation requirements in areas with high moisture levels. Refer to the technical data sheet for suitable surface membranes and smoothing compounds.
Available Sizes and Coverage
Mapeheat Mesh is available in coverage sizes from 1m² to 12m², depending on the selected heating output.
The correct size should be selected according to the actual heated floor area, excluding permanent fixtures such as cabinets, toilets, sinks and baths. The mesh can then be configured on site to suit the room layout.
Technical Specifications
- Product: Mapei Mapeheat Mesh.
- Product type: Self-adhesive, pre-wired electric floor-heating mesh.
- Mesh material: Self-adhering fibreglass mat.
- Mesh colour: Red with black heating cable.
- Width: 500mm.
- Thickness: 3.5mm in the technical data table; the product description gives a low-profile construction of approximately 4.5mm.
- Operating voltage: 230V.
- Available power outputs: 90W/m² and 160W/m².
- Minimum cable bending radius: 12mm.
- Minimum cable spacing: 75mm.
- Minimum installation temperature: +10°C.
- Maximum storage temperature: +90°C.
- Heating cable: Two-wire, grounded, twisted-pair cable with PVC outer jacket.
- Available coverage: 1m² to 12m², depending on wattage.
Installation and Important Requirements
- Install onto a smooth, structurally sound and suitably prepared substrate.
- Use a suitable polymer-modified adhesive or self-levelling compound as specified by Mapei.
- Follow the manufacturer's installation manual for positioning, electrical connections and testing.
- The heating wire must never be overlapped, crossed, cut, shortened or modified.
- Do not cover expansion joints.
- Do not install beneath carpet, linoleum, solid hardwood, rubber or parquet.
- Do not use for exterior applications.
- Do not use in submerged applications or on floors subject to standing water.
- Do not install on bituminous substrates or highly flammable materials.
- The combined thermal resistance of floor covering layers must not exceed R-1.5.
Frequently Asked Questions
What is Mapeheat Mesh?
Mapeheat Mesh is a self-adhesive, pre-wired electric underfloor heating system. Its heating cable is attached to a fibreglass mesh that bonds to the prepared subfloor during installation.
What is the difference between Mapeheat Mesh 90 and 160?
Mapeheat Mesh 90 produces 90W/m² and is suitable for a wider range of floor coverings, including specified wood, laminate and luxury vinyl flooring. Mapeheat Mesh 160 produces 160W/m² and is recommended for tile and stone flooring.
Can Mapeheat Mesh be used in showers and steam rooms?
Yes. Mapei identifies Mapeheat Mesh as suitable for wet environments such as showers and steam rooms. It must not be used for submerged applications or floors subject to standing water.
Can the mesh be cut to fit a room?
The mesh can be configured on site to suit the room layout. However, the heating cable itself must never be cut, shortened, crossed or modified. Follow the manufacturer's installation instructions.
What sizes are available?
Mapeheat Mesh is available in coverage sizes from 1m² to 12m², depending on the selected wattage.
Does Mapeheat Mesh require a separate thermostat?
Yes. A compatible thermostat is required to control the heating system. Mapei lists Mapeheat Thermo Touch, Thermo Connect and Thermo Basic among its thermostat accessories.
Technical Documentation
Mapeheat Mesh is classified by Mapei as an article and does not require a Safety Data Sheet. Refer to the manufacturer's technical data sheet and installation manual for complete installation, electrical and floor construction requirements.
Supply from Clever Shield Coatings UK
Clever Shield Coatings UK supplies Mapei products throughout the UK. Always consult the manufacturer's technical documentation and installation instructions to confirm the correct heating output, floor covering compatibility and installation requirements.
