Description

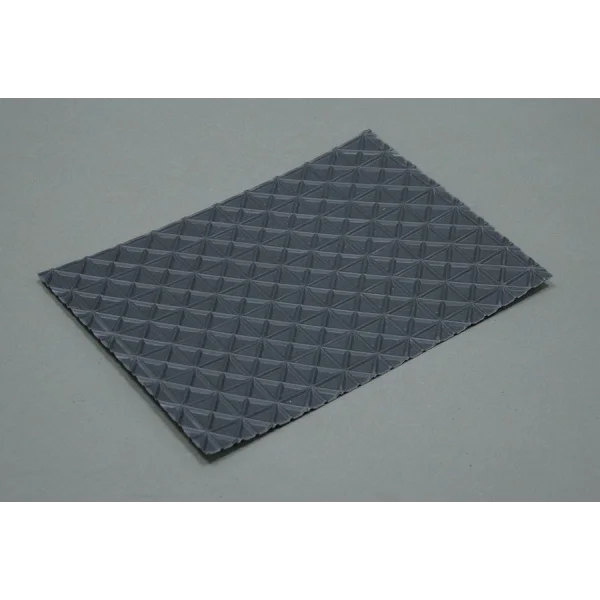

Flat Loose Laid High Grade Flooring Membrane – Primarily for isolating moisture sensitive flooring from dampness in the floor slab, but can also be used as the floor membrane as part of the Newton CDM System, when the survey has ascertained that there is no risk of water entering through the body of the slab.
Key Benefits
- Can be installed above slabs that are not yet cured, and as soon as the concrete is walkable.
- Able to resist very high compressive loading, with capability of over 1000kN/m2.
- Can be installed as a high-load DPC within structural block walls.
- Inert and highly resistant to water, alkalies, hydrocarbons, saline solutions and organic acids.
- Not affected by minerals, and resistant to bacteria, fungi and other small organisms.
Typical Applications
To protect flooring from not yet cured slabs.
Above contaminated floors
High grade DPM
As the damp proof floor membrane for use with Newton damp proofing wall membranes
Can be used as the flooring membrane within the Newton CDM System if specified by a trained waterproofing surveyor.
Product Data
Code: M6
Packaging: Roll 2.06m x 20m
Colour: Grey
Application Rate: 40m²
Downloads
Technical Data
| Installed Performance | Result |
| Compressive strength | > 1000 kPa |
| Compressive strength – Permanent loading | 100 kPa |
| Thermal conductivity | 0.480 W/mK |
| Water vapour diffusion resistance – Sd value | 200M |
| Resistance to fire | Euroclass F |
| Chemical resistance – Excellent |
