Newton CDM 508 8mm Mesh Membranes

Save £149.16 inc.VAT

Style: CDM 508 Mesh (Code M3): 2m x 20m (40m2)
Price:
Sale price£201.94 inc.VAT Regular price£351.10 inc.VAT

Description

BBA certified, 8mm meshed cavity drain membrane for basements – Suitable for use internally below the ground to retaining walls and vaulted soffits.

Newton CDM 508 Mesh Membrane is the most commonly used meshed membrane within our Newton CDM System that includes Newton drainage and pumping systems.

Newton CDM 508 Mesh Membrane is guaranteed against deterioration for 30 years, with a life expectancy of at least 50 years (DIN 9001:2000) and is supported by BBA Certification Number 94/3010.

Benefits
  • BBA Certified as a waterproofing membrane as part of the Newton CDM System
  • Does not require extensive and damaging preparation to the wall surface

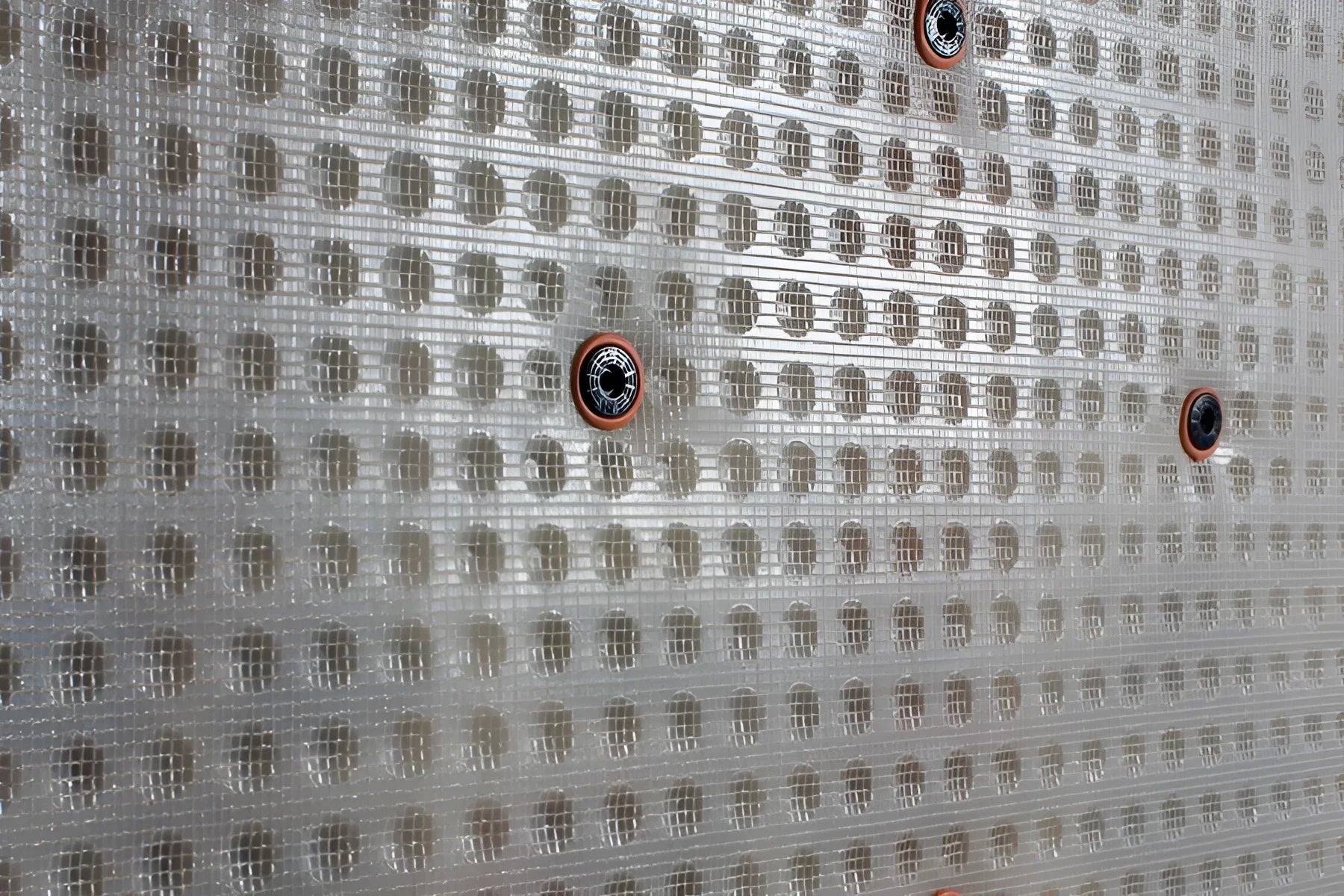

  • Polyethylene netting is ‘welded’ to the surface of the membrane during the manufacturing process producing an incredibly well bonded surface mesh
  • Superb ‘key’ for renders, plasters or for Dot & Dab Plasterboard
  • Waterproofing that is guaranteed to work when used as part of our System 500 installed by a Newton Specialist Basement Contractor
Applications

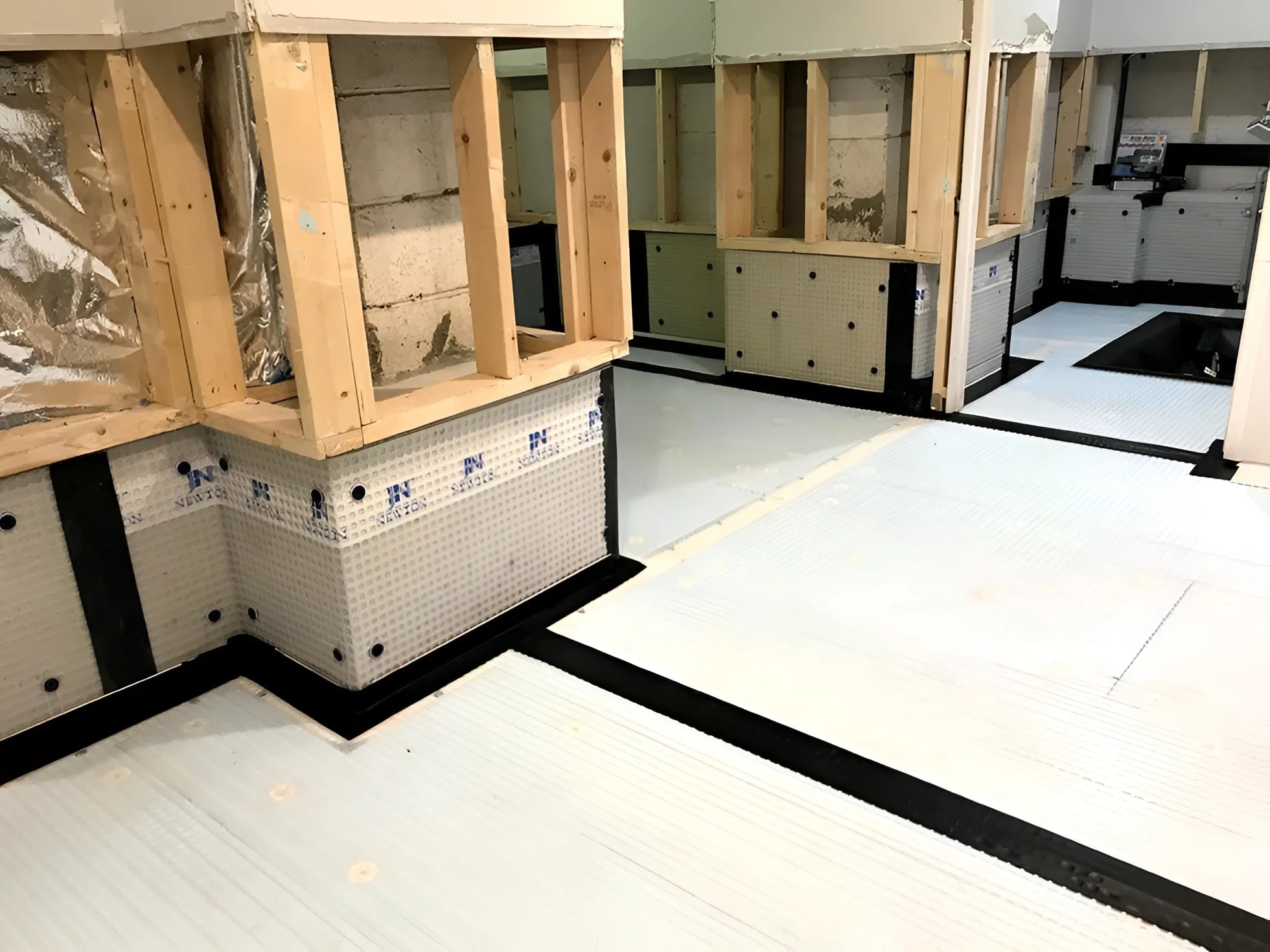

  • As a damp-proof base for renders, plasters or dot & dab plasterboard within the Newton CDM System
  • Areas where space is limited such as stairways
  • A waterproof base for renders, plasters or dot & dab plasterboard
  • As a render base to external areas of the waterproofing scheme such as light-well walls.

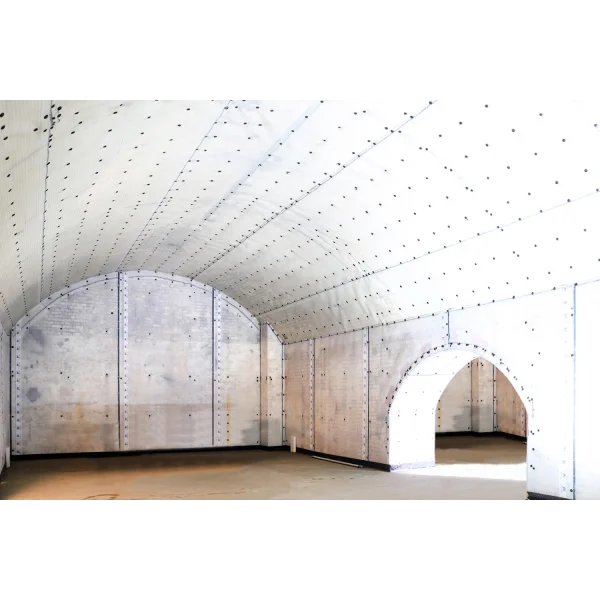

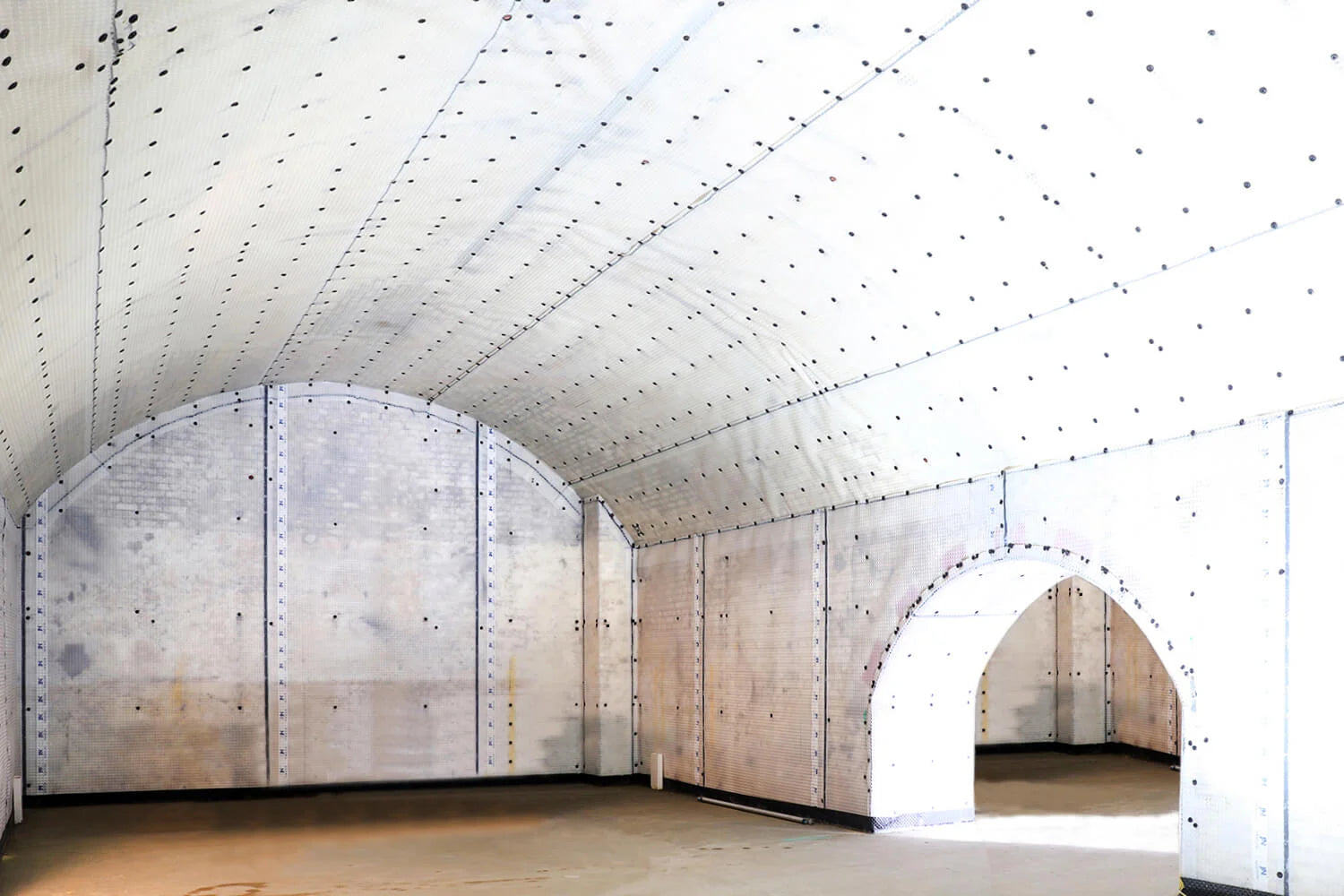

  • Vaulted soffits or curved walls where a dry-lining frame may not be appropriate
  • CDM 508 Mesh Membrane (M3) is supplied in rolls of 2m x 20m giving a total of 40m2
BS 8102:2022

The British Standard 8102:2022 Code of Practice for Protection of Below Ground Structures Against Water Ingress is the main design guide for structural waterproofing in the UK.

The Newton CDM System is a maintainable system, so complies with BS 8102 requirements. The standard also specifies that: “a waterproofing specialist should be included as part of the design team so that an integrated waterproofing is created”

Therefore it is our recommendation that the Newton CDM System is installed by a Newton Specialist Contractor (NSBC).

Technical Data
Features Result
Material HDPE
Colour White
Density 600 g/m2
Width 2.0m
Length 20m
Area 40m2
Height 7.4mm
Membrane thickness 0.8mm
Stud depth 6.6mm
Vicat softening temperature 126ºC
Packaged weight 26.96kg
Service temperature -40ºC to +80ºC



CDM 508 (Code M1): 2.4m x 20m (48m²)
CDM 508 eco Floor recycled membrane (Code M2): 2.5m x 20m (50m²)
CDM 508R gas barrier (Codes M1R & M2R): 2.4m x 20m & 2.07 x 20m (48m² & 41.4m²)
CDM 508 Mesh (Code M3): 2m x 20m (40m²)

Typical Applications

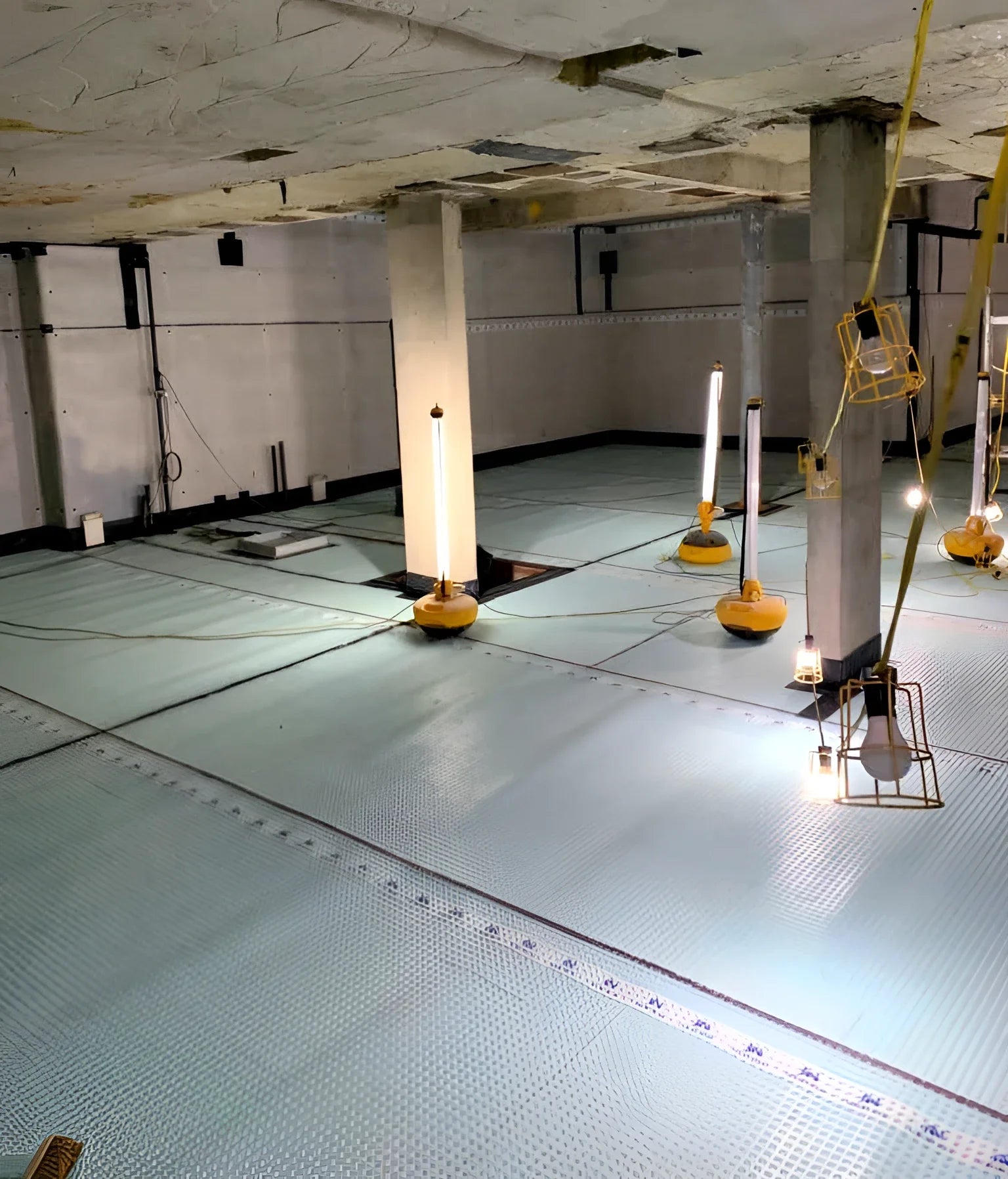

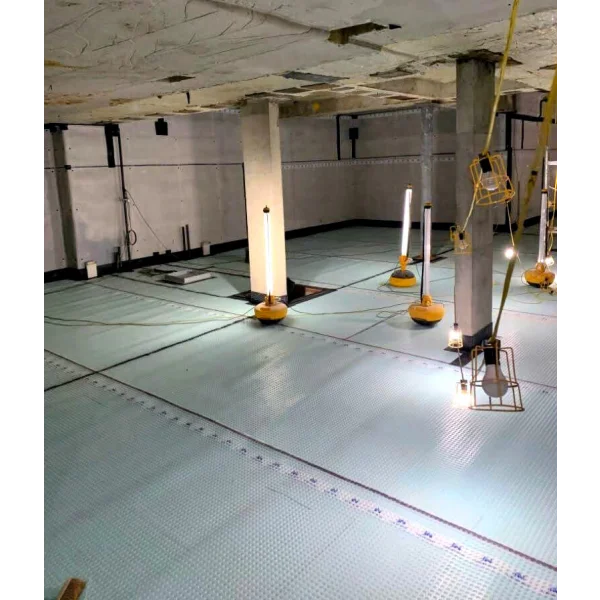

As a waterproofing membrane as part of the Newton CDM System and be used as both the wall and the floor membrane for the waterproofing and gas control of:

  • Basements
  • Cellars
  • Vaults
  • Tunnels
  • Arches
BS 8102:2022

The British Standard 8102:2022 Code of Practice for Protection of Below Ground Structures Against Water Ingress is the main design guide for structural waterproofing in the UK.

The Newton CDM System is a maintainable system, so complies with BS 8102 requirements. The standard also specifies that: “a waterproofing specialist should be included as part of the design team so that an integrated waterproofing is created”

Therefore it is our recommendation that the Newton CDM System is installed by a Newton Specialist Contractor (NSBC).

Product Data

Code: M3

Packaging: Roll 2.0m x 20.0m

Colour: White/Translucent

Area: 40m²

Downloads



Newton CDM System - Overview

The Newton Cavity Drain Membrane (CDM) System is a maintainable basement waterproofing solution, certified to BES 6001 by BRE Global, ideal for new-build basements and refurbishment projects.

The four components of the Newton CDM system

Comprising of four components: Cavity Drain Membranes, Drainage, Pumps and Control Systems, the Newton CDM System complies with the British Standard for Waterproofing and provides a Grade 3 habitable internal environment.

Cavity Drain Membranes and Drainage

Cavity drain membrane (CDM) systems are a maintainable, internal basement waterproofing solution, suitable for protecting below-ground environments against water that has penetrated through the structure. CDM Systems are known as ‘Type C’ waterproofing in British Standard 8102:2022 and are ideal for new-build, refurbishment and historic/listed projects.

Known as the most failsafe form of waterproofing, the cavity drain membranes capture ingressing water at the point of ingress, then the CDM drainage system manages and directs the water to an integral pumping system or drainage outlet for safe removal.

The Newton PAC-500 System also provides a combined CDM waterproofing and gas proofing system for below ground spaces that are at risk from ground gases.

Pumps and Control Systems

Once the water has been captured by the cavity drain membranes and drainage channels, it needs to be safely removed. The Titan-Pro is a packaged sump chamber and pump system designed specifically to be used with the Newton CDM System. Compatible with a variety of Newton pumps, it is ideal for almost any cavity drain waterproofing system.
