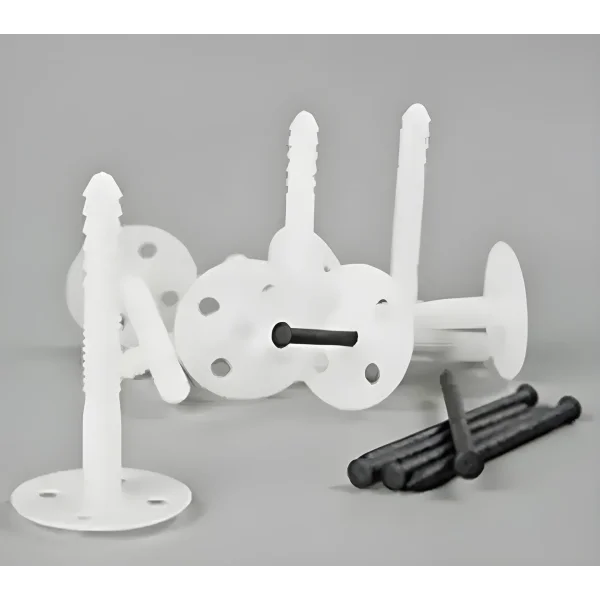

Newton Insulation Fixings – Secure Fibran Closed-Cell Insulation with Ease
Newton Insulation Fixings provide a reliable and secure method for fixing Fibran Closed-Cell Insulation Boards in waterproofing and drainage applications. Designed for ease of installation, these fixings ensure insulation remains firmly in place, even in demanding below-ground environments.
Key Benefits
✔ Strong mechanical fixing for insulation boards.
✔ Ensures stable support beneath cavity drain flooring membranes.
✔ Ideal for external waterproofing applications – protects liquid-applied membranes on retained walls.
✔ Provides insulated support for Newton 403 HydroBond and other external waterproofing solutions.
✔ Durable and weather-resistant – suitable for long-term use in green roofs, parking decks, and full external envelope insulation.
Typical Applications
🔹 Spacer for Cavity Drain Flooring Membranes
🔹 Fixing insulation over liquid-applied waterproofing
🔹 Support for Newton 403 HydroBond
🔹 Parking decks & green roofs
🔹 Subterranean structures within the water table
Product Data
-
Code: IF90
-
Box Quantity: 200 fixings
-
Size: 7mm x 90mm
Installation Instructions
1️⃣ Remove shrink film before installation.
2️⃣ Stagger boards, ensuring drainage slots align for proper water flow.
3️⃣ Cut boards to size using a saw, knife, or hot wire device.
4️⃣ Fix to slab/raft using five fixings per board (one at each corner, 100mm in, and one at the center).
