PPS Dual V4 Package Pump Station

Dual V4 Pump Station

The Dual V4 Pump Station is a high-performance packaged pumping system designed for demanding below-ground waterproofing applications where higher discharge heads are required.

An upgrade to the Dual V3, the Dual V4 is specifically engineered for deep basements, long discharge runs and installations with increased pipework losses, delivering reliable groundwater management in challenging conditions.

Overview

The Dual V4 is designed to collect groundwater via a perimeter channel or modular cavity drainage system, making it ideal for residential and light commercial basement waterproofing projects.

A typical application includes double or triple depth basements, or installations where the discharge pipework exceeds standard head heights. The system is capable of managing groundwater from basements up to 150m² where a discharge head greater than 5 metres is required.

Surface water from lightwells of up to 12m² can also be incorporated into the drainage system when used alongside a cavity membrane system.

Manufactured from high-density polyethylene (HDPE), the chamber is built to withstand the hydrostatic pressures associated with high water tables and long-term below-ground installation.

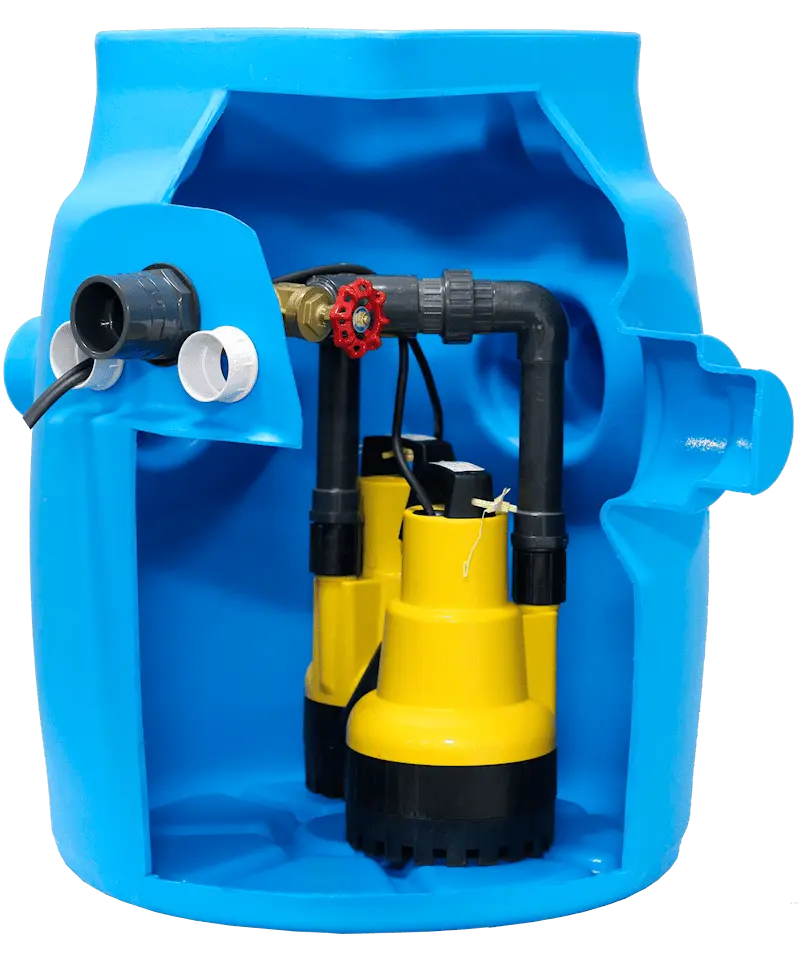

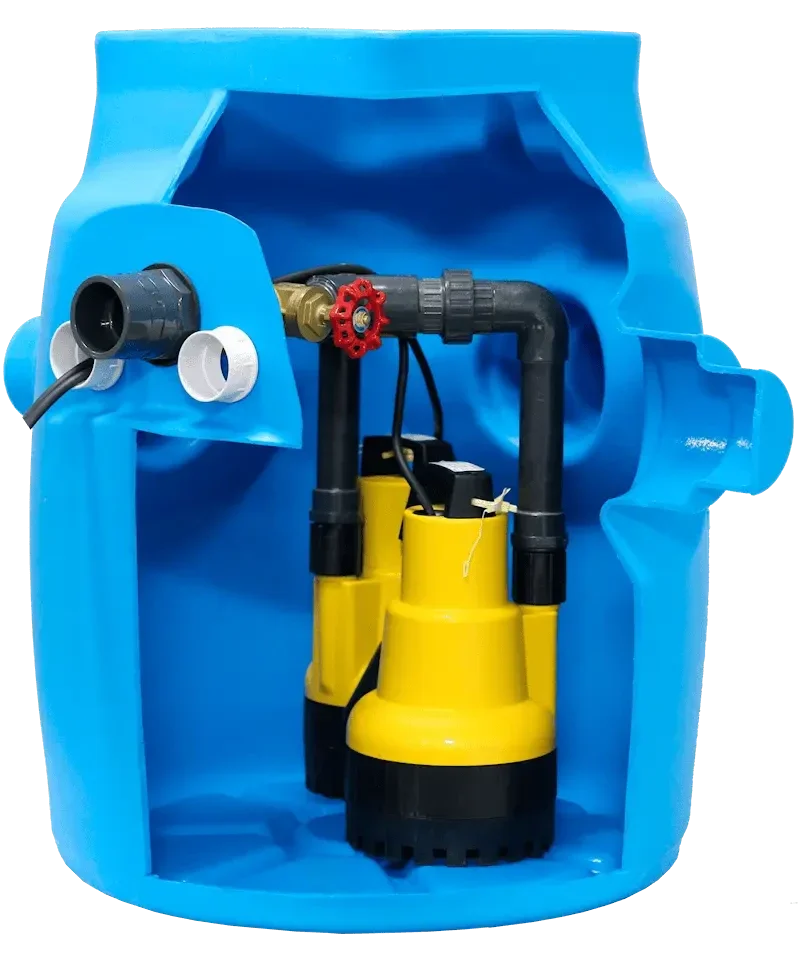

The Dual V4 is supplied as a complete packaged solution, including the chamber, all internal pipework and two powerful V4 pumps, providing redundancy and increased pumping capacity for critical applications.

Installation is suitable for contractors with competent building, plumbing and electrical skills.

Note: This pump station is designed for groundwater and surface water only. It is not suitable for grey water or foul water. For these applications, a foul water pump station is required.

Key Applications

• Deep basements requiring higher discharge heads

• Double and triple depth basement construction

• Basements with long or complex discharge pipework

• High water table sites

• Residential and light commercial waterproofing projects

Technical Data (Summary)

• Product Code: D V4

• Chamber Material: High Density Polyethylene (HDPE)

• Volume Below Inlets: 137 litres

• Total Volume: 273 litres

• Fixed Inlets: 3 × 110 / 160mm

• Cable Duct Size: 50mm

• Discharge Connection: 2” / 50mm BSP Class C

• Discharge Pipework: 2” / 50mm BSP Class C

• Internal Pipework: 1.25” / 32mm BSP Class C

• Cable Duct Pipework: 2” / 50mm white waste pipe

Why Choose the Dual V4 Pump Station?

• Designed for high head and long discharge runs

• Dual pump configuration for added resilience and performance

• HDPE chamber built for demanding groundwater conditions

• Fully compatible with cavity drain waterproofing systems

• Manufacturer-backed solution supplied by an approved distributor
