PPS Dual V6 Package Pump Station

PPS Dual V6 Package Pump Station

The PPS Dual V6 Pump Station is a high-performance packaged pumping solution designed for demanding below-ground waterproofing applications where very high discharge heads and extended pipe runs are required.

Supplied as a complete twin-pump system, the Dual V6 provides enhanced resilience, reliability and pumping capacity for deep basements and complex groundwater management scenarios.

Overview

Specifically engineered for below-ground installations, the Dual V6 is suitable for projects where standard pump stations are not sufficient due to increased head height, long discharge runs or higher hydraulic losses.

A typical application includes double or triple-depth basements, or installations where discharge pipework must rise above 5 metres. The system is capable of managing groundwater from basements up to 150m², with the option to incorporate surface water drainage from lightwells up to 12m² when used alongside a cavity drain membrane system.

The chamber is manufactured from high-density polyethylene (HDPE), offering excellent resistance to hydrostatic pressure in areas with high water tables.

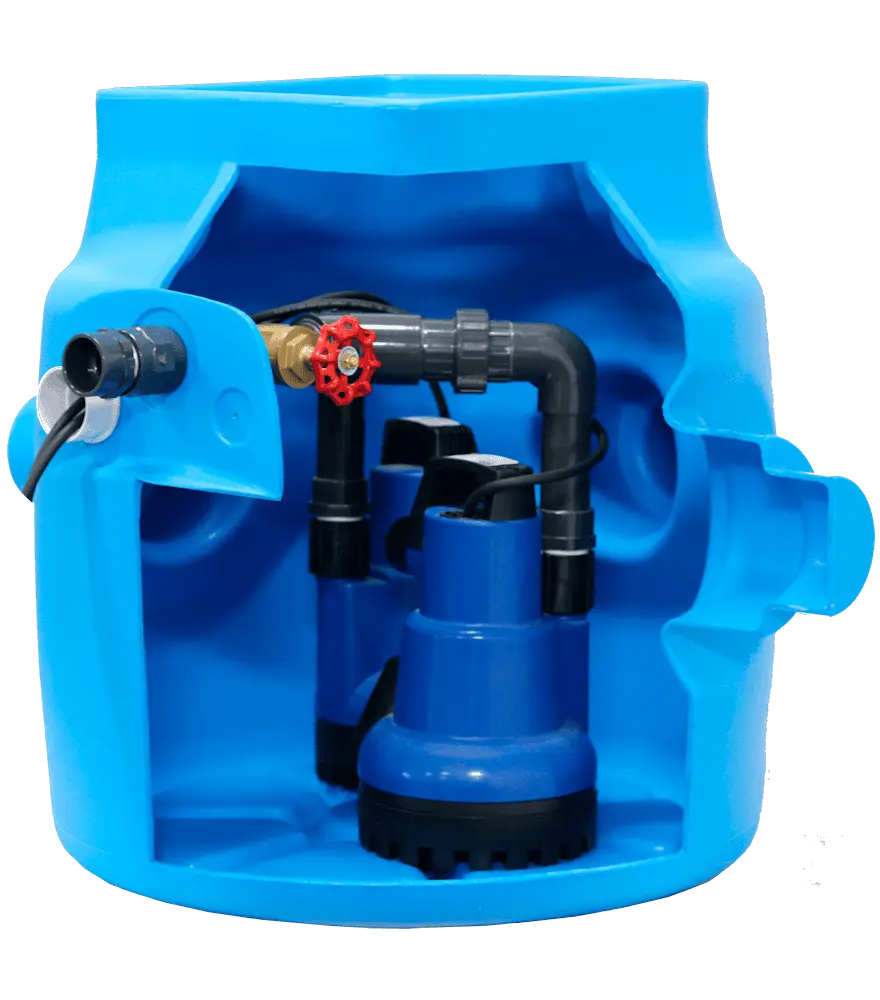

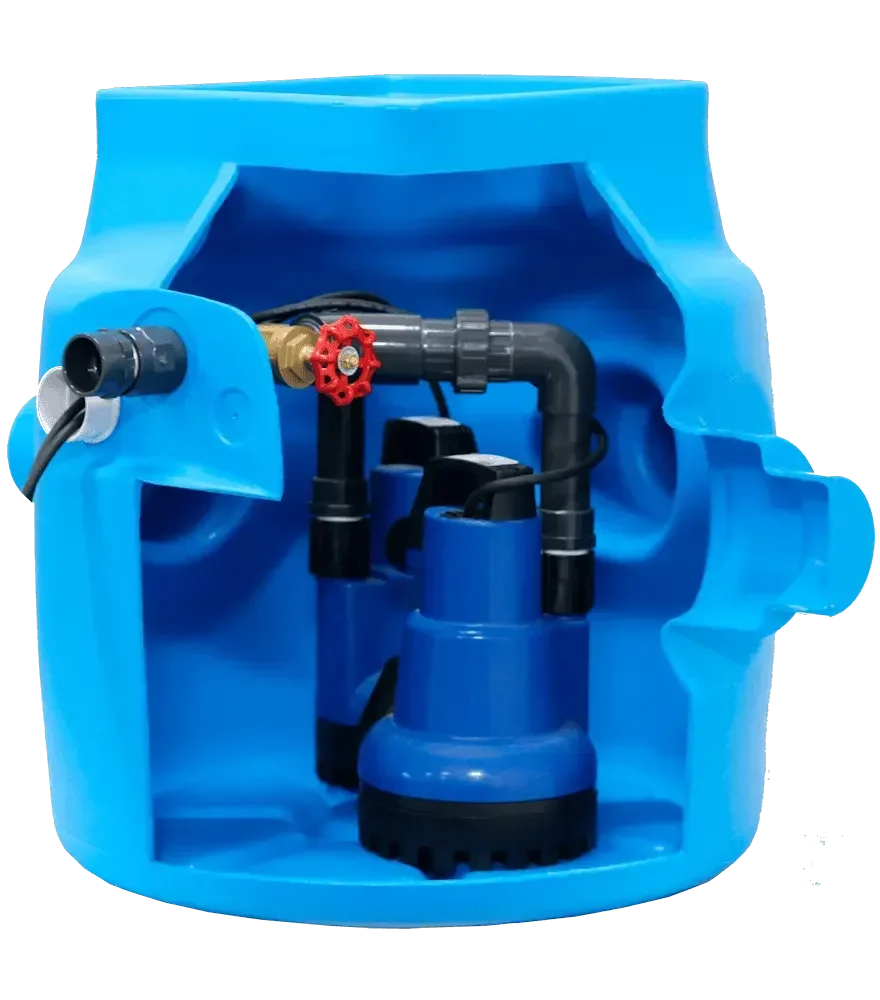

Complete Packaged System

Each Dual V6 Pump Station is supplied as a fully assembled package, including:

• HDPE chamber

• All internal pipework

• Two high-capacity V6 pumps

• Factory-configured discharge and cable duct connections

The system is designed for installation by contractors with appropriate building, plumbing and electrical competence.

Please note: The Dual V6 Pump Station is designed for groundwater only. It is not suitable for grey water or foul water applications. For those requirements, a PPS Foul V3 Pump Station should be specified.

Technical Data

• Product Code: D V6

• Chamber Material: High Density Polyethylene (HDPE)

• Volume Below Inlets: 137 litres

• Total Chamber Volume: 273 litres

• Fixed Inlets: 3 × 110 / 160mm

• Cable Duct Size: 50mm

• Discharge Connection: 2” / 50mm BSP Class C

• Discharge Pipework: 2” / 50mm BSP Class C

• Internal Pipework: 1.25” / 32mm BSP Class C

• Cable Duct Pipework: 2” / 50mm white waste pipe

Why Choose the PPS Dual V6 Pump Station?

• Designed for very high head and long discharge runs

• Twin-pump configuration for added resilience and performance

• Robust HDPE chamber suitable for demanding groundwater conditions

• Fully compatible with cavity drain waterproofing systems

• Manufacturer-backed design, supplied by an approved UK distributor

Manufacturer & Accreditation

PPS are specialist manufacturers of basement pump stations, providing installation and service solutions for both the domestic basement market and light commercial building services sector.

Clever Shield supplies PPS pump stations as part of fully integrated waterproofing and groundwater management systems, with technical support available to assist specification and installation.
