Description

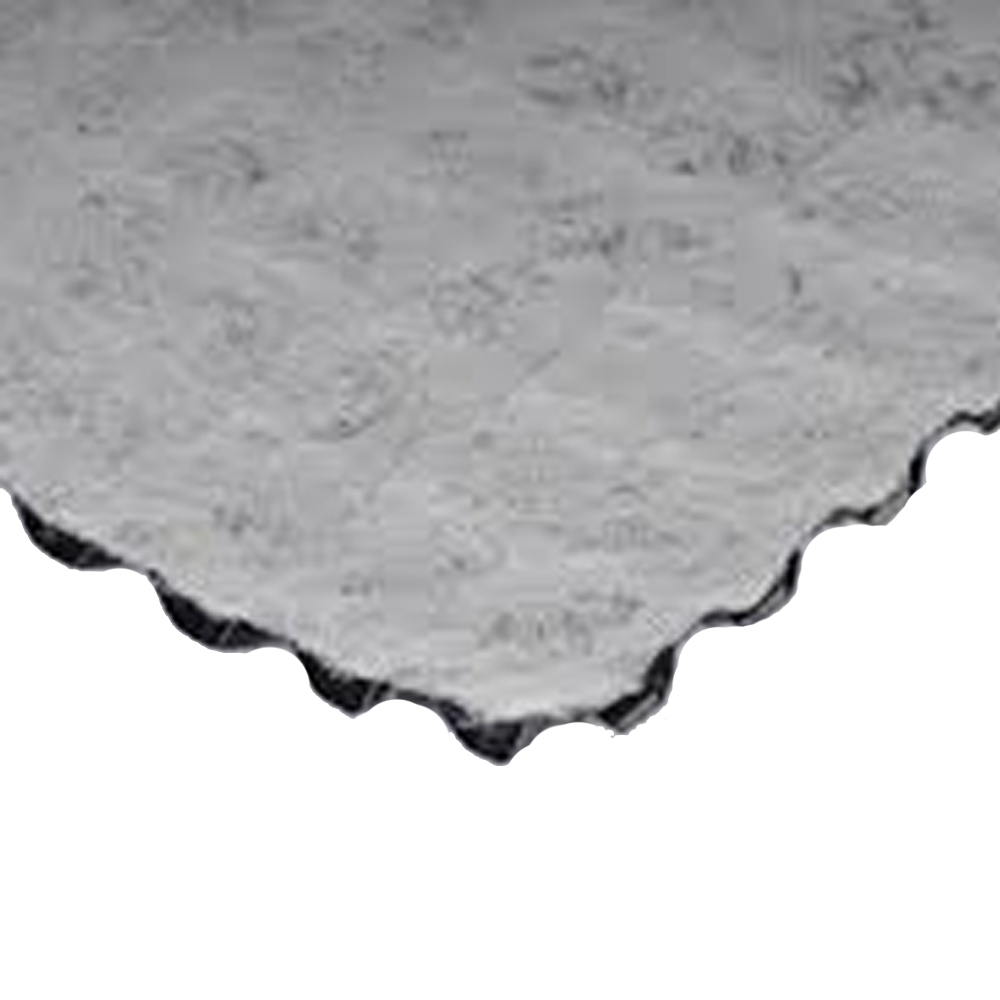

RIW Double Drain Geocomposite Drainage Membrane
RIW Double Drain is a high-performance geocomposite drainage membrane designed to protect below-ground waterproofing systems while efficiently directing groundwater away from the structure. Manufactured from a profiled high-density polyethylene (HDPE) core bonded to a permeable geotextile filter fabric, it creates a durable drainage layer that relieves hydrostatic pressure and safeguards primary waterproofing membranes from damage during backfilling. Suitable for basements, retaining walls, podium decks, reservoirs and other below-ground structures, Double Drain enhances the long-term performance of external waterproofing systems.
The profiled HDPE core provides a high-capacity drainage channel, while the geotextile filter prevents soil particles from blocking water flow. In addition to protecting waterproof membranes from backfill damage and root penetration, Double Drain can improve the thermal performance of below-ground structures. It is quick to install, lightweight, and can often be used as an alternative to traditional protection boards where effective drainage and membrane protection are required.
Key Benefits
- High-capacity geocomposite drainage membrane
- Relieves hydrostatic pressure from below-ground structures
- Protects waterproofing membranes during backfilling
- High impact and compressive strength
- Prevents groundwater reaching the structure
- Eliminates the need for granular backfill in many applications
- Geotextile filter prevents drainage channels from clogging
- Suitable for vertical and horizontal installations
- Lightweight and easy to install
- Long-term drainage performance
- Can be used as an alternative to protection board
- CE Marked
Applications
- Basement waterproofing
- Retaining walls
- Foundation walls
- Podium decks
- Roof terraces
- Reservoirs
- External tanking systems
- Below-ground structures
- Waterproofing protection
- Hydrostatic pressure relief
Technical Information
- Product Type: HDPE drainage membrane with geotextile filter
- Overall Thickness: 8mm
- Roll Size: 2m × 20m
- Coverage per Roll: 40m²
- Roll Weight: 0.58kg/m²
- Maximum Drainage Capacity: 2.25 litres/sec/m
- Maximum Compressive Strength: 150kN/m²
- Working Temperature: -30°C to +80°C
- Lap Width: 70mm
- Colour: Brown
- Installation: Vertical or horizontal
- CE Marked to EN 13252
Frequently Asked Questions
What is RIW Double Drain used for?
It protects below-ground waterproofing membranes while creating a drainage layer that channels groundwater away from the structure and reduces hydrostatic pressure.
Can Double Drain replace protection board?
Yes. In many waterproofing systems it can be used as an alternative to traditional protection boards while providing the added benefit of drainage.
Which side faces the soil?
The geotextile filter fabric should face outwards towards the surrounding ground, allowing water to enter the drainage channels while preventing clogging.
Where can Double Drain be installed?
It is suitable for basements, retaining walls, reservoirs, podium decks, terraces and other below-ground structures.
What size is each roll?
Each roll measures 2m wide by 20m long and provides approximately 40m² of coverage.
