RIW R7 Cavity Drain 2.07m x 20m

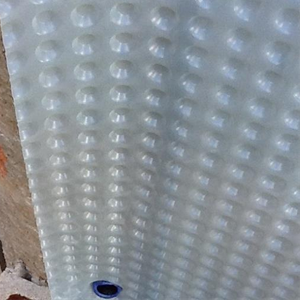

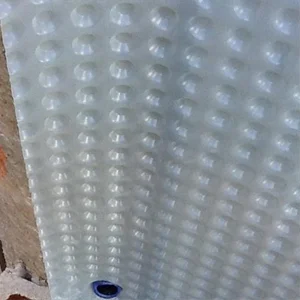

RIW Cavity Drain R7 Basement Drainage Membrane

RIW Cavity Drain R7 is a high-performance Type C cavity drainage membrane manufactured from virgin high-density polyethylene (HDPE). Featuring 8mm studs and a robust profiled design, it creates a permanent drainage cavity that safely collects and channels water to a suitable drainage system, helping to keep below-ground structures dry. Ideal for basement waterproofing, cellar conversions and retaining walls, it can be installed onto concrete and masonry substrates, including damp surfaces.

Designed in accordance with BS 8102 Type C waterproofing principles, Cavity Drain R7 provides effective protection for Grade 1, Grade 2 and Grade 3 basement environments when installed as part of a complete maintainable drainage system. Manufactured from durable virgin HDPE, it offers excellent compressive strength, high drainage capacity and long-term resistance to chemicals, making it suitable for new build and refurbishment projects. It can also be combined with Type A or Type B waterproofing systems for enhanced protection.

Key Benefits

• Type C cavity drainage membrane
• High-density polyethylene (HDPE) construction
• 8mm stud profile for efficient drainage
• High drainage capacity
• High compressive strength
• Suitable for wet substrates
• Resistant to chemicals and contaminants
• Long service life
• Easy to install
• Suitable for new build and refurbishment
• Can be combined with Type A and Type B waterproofing
• BBA Approved
• CE Marked to EN 13967

Applications

• Basement waterproofing
• Cellar conversions
• Below ground structures
• Retaining walls
• Concrete walls
• Masonry walls
• Type C drained protection systems
• Basement floor drainage
• Wall waterproofing
• Structural waterproofing

Technical Information

• Product Type: HDPE cavity drainage membrane
• Material: Virgin high-density polyethylene
• Colour: Translucent
• Thickness: 0.5mm
• Stud Height: 8mm
• Roll Size: 2m × 20m
• Coverage per Roll: 40m²
• Weight: 0.48kg/m²
• Maximum Drainage Capacity: 2.25 litres/sec/metre
• Maximum Compressive Strength: 250kN/m²
• Working Temperature: -30°C to +60°C
• Side Lap: 70mm
• End Lap: 200mm
• Certification: BBA Certificate No. 05/4232
• Standard: EN 13967

Frequently Asked Questions

What is RIW Cavity Drain R7 used for?

It is a Type C cavity drainage membrane designed to collect and direct water from below-ground walls into a maintainable drainage system.

Can it be installed onto damp walls?

Yes. Cavity Drain R7 can be installed onto damp concrete and masonry substrates.

Is it suitable for basement conversions?

Yes. It is designed for basement waterproofing and can provide Grade 1, 2 and 3 protection when incorporated into a correctly designed Type C waterproofing system.

Can it be used with other waterproofing systems?

Yes. It can be combined with Type A or Type B waterproofing systems to provide dual or combined protection where required.

Is RIW Cavity Drain R7 certified?

Yes. It is BBA Approved and CE Marked to EN 13967 for use as a cavity drainage membrane.

Downloads

Data Sheet
