Description

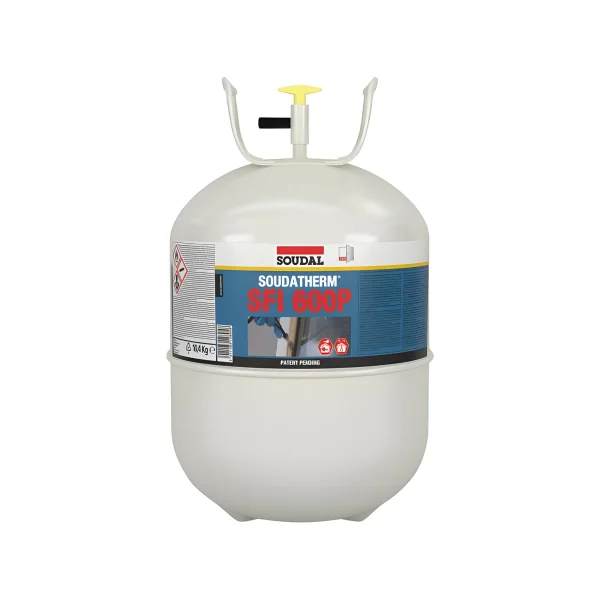

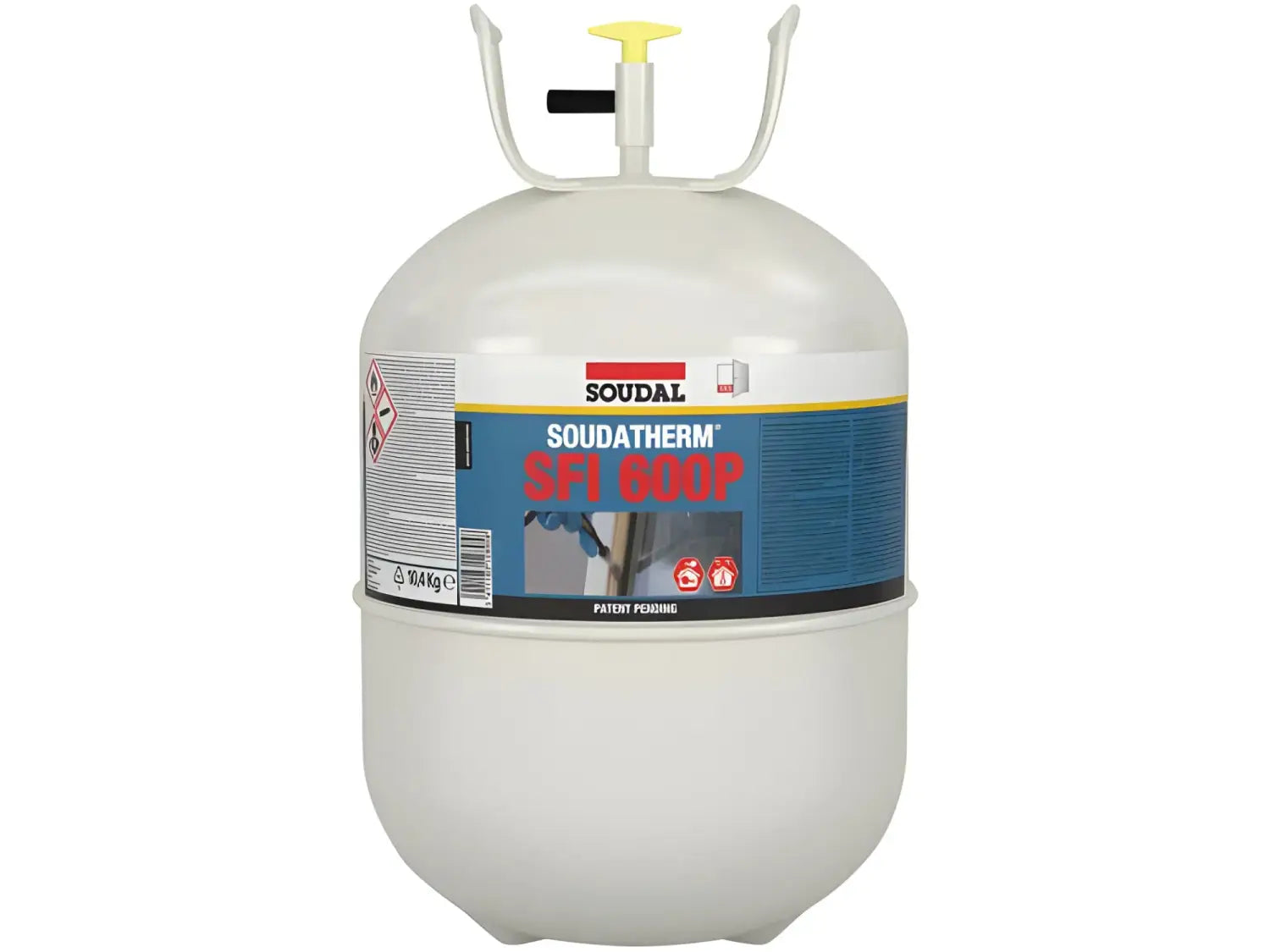

Soudal Soudatherm SFI 600P – Structural Window Frame Insulation Foam
Specialist Low-Expansion PU Foam for Airtightness, Thermal and Acoustic Performance
Soudal Soudatherm SFI 600P is a specialist polyurethane foam developed for filling, sealing and strengthening the cavity between glazing units and window frames (the window rebate). Its controlled low-expansion formulation helps improve window airtightness, thermal insulation and mechanical stability.
Designed for professional window manufacturing, installation and refurbishment, Soudatherm SFI 600P has excellent adhesion to common window frame materials, including PVCu, aluminium, timber and metal. Its low thermal conductivity of 0.036 W/m·K helps improve window Uf-values, while also enhancing acoustic insulation.
Applied using a dedicated Soudatherm adjustable applicator gun system, the foam provides accurate, controlled application. It is compatible with most insulating glass unit (IGU) secondary sealants and can be cut if a glazing unit needs to be removed or replaced.

Key Features and Benefits
- Specialist window rebate foam: Developed specifically for filling and sealing cavities between glazing units and window frames.
- Improves airtightness: Helps reduce air leakage through the window rebate.
- Thermal performance: Low thermal conductivity of 0.036 W/m·K helps improve window Uf-values.
- Acoustic insulation: Helps enhance the sound insulation performance of window systems.
- Mechanical stability: Adhesive properties help strengthen the connection between the glass and frame.
- Controlled low expansion: Allows accurate dispensing and helps minimise excessive foam expansion.
- Compatible with IGU sealants: Suitable for use with most insulating glass unit secondary sealants.
- Easy glass replacement: Cured foam can be cut when glazing units need to be removed or replaced.
- Fast curing: Skin formation within approximately 10 minutes and full cure after approximately 24 hours.
- No flammable propellants: Formulated without flammable propellants.
Typical Applications
- Filling and sealing window rebate cavities
- Structural insulation between glazing and window frames
- Window manufacturing and assembly
- Professional window installation
- Window refurbishment and replacement projects
- Improving airtightness around insulating glass units
- Enhancing thermal and acoustic performance of window systems
- Strengthening the connection between glazing units and frames
Compatible Materials
- PVCu window frames
- Aluminium window frames
- Timber window frames
- Composite window systems
- Metal window profiles
- Glass and insulating glass unit systems, when used in the specified rebate application
Application Instructions
1. Preparation
- Ensure the rebate cavity and bonding surfaces are clean and suitable for application.
- Check that the glazing and frame construction is appropriate for the Soudatherm SFI 600P system.
- Use the dedicated Soudatherm applicator gun and the appropriate SFI 600P nozzle.
- Follow the manufacturer's application instructions for preparation and moisture conditioning of the joint.
2. Application
- Prepare and shake the canister in accordance with the manufacturer's instructions.
- Connect the canister to the appropriate specialist applicator equipment.
- Apply the foam into the cavity between the glass unit and window frame.
- Use the adjustable gun to control the quantity and placement of foam.
- Take account of the foam's controlled expansion when filling the rebate.
- Ensure the foam is applied consistently throughout the required cavity.
3. Curing and Finishing
- Skin formation occurs within approximately 10 minutes.
- Allow approximately 24 hours for full curing under the manufacturer's stated conditions.
- Protect the cured foam from direct UV exposure. The rebate cavity must remain protected within the window construction.
- Follow the manufacturer's instructions before proceeding with subsequent glazing or sealing operations.
Technical Data
| Product | Soudal Soudatherm SFI 600P |
| Product type | Specialist polyurethane foam for window rebate insulation |
| Base | Polyurethane |
| Curing system | Moisture curing |
| Expansion | Controlled low expansion |
| Thermal conductivity | 0.036 W/m·K |
| Skin formation | Approximately 10 minutes |
| Full cure | Approximately 24 hours |
| Application equipment | Dedicated adjustable Soudatherm applicator gun system |
| IGU sealant compatibility | Compatible with most IGU secondary sealants |
| Acoustic performance | Helps enhance window acoustic insulation |
| UV resistance | Not UV resistant; rebate must remain protected |
| Flammable propellants | None |
| Pack size | 10.4kg canister |
Frequently Asked Questions
What is Soudatherm SFI 600P used for?
Soudatherm SFI 600P is designed to fill, seal and strengthen the cavity between glazing units and window frames. It helps improve airtightness, thermal insulation, acoustic performance and mechanical stability.
Which window frame materials is it suitable for?
It is suitable for aluminium, PVCu, timber and composite window frame systems, as well as other compatible metal profiles.
Does Soudatherm SFI 600P improve window thermal performance?
Yes. Its low thermal conductivity of 0.036 W/m·K helps improve the thermal performance of the window rebate and can contribute to improved window Uf-values.
Is Soudatherm SFI 600P compatible with IGU sealants?
Yes. The manufacturer confirms compatibility with most insulating glass unit (IGU) secondary sealants.
How long does Soudatherm SFI 600P take to cure?
Skin formation occurs within approximately 10 minutes, with full curing achieved after approximately 24 hours under the manufacturer's stated conditions.
Can the cured foam be exposed to sunlight?
No. Soudatherm SFI 600P is not UV resistant. The foam must remain protected within the window rebate and should not be left exposed to direct sunlight.
Can glazing units be removed after the foam has cured?
Yes. The cured foam can be cut to allow a glazing unit to be removed or replaced where necessary.
Does Soudatherm SFI 600P use a standard foam gun?
No. It is designed for application using the dedicated Soudatherm adjustable applicator gun system and compatible SFI 600P nozzle.
Recommended Application Accessories
Soudatherm SFI 600P requires specialist application equipment for controlled dispensing. The following accessories are available separately:
Manufacturer Technical Information
Refer to the latest manufacturer technical documentation for complete application instructions, equipment requirements and compatibility information.
Buy Soudal Soudatherm SFI 600P from Clever Shield
Clever Shield supplies specialist Soudal adhesives, sealants and insulation products to window manufacturers, glazing contractors, installers and construction professionals throughout the UK.
For product availability, application accessories or assistance with your order, contact our team on 01268 472358 or email sales@clevershieldcoatings.co.uk.
Important: Clever Shield supplies products only and does not design or specify systems. Customers and installers are responsible for confirming product suitability and compatibility for the intended application and must follow the latest manufacturer Technical Data Sheet, Safety Data Sheet and installation instructions.
