Description

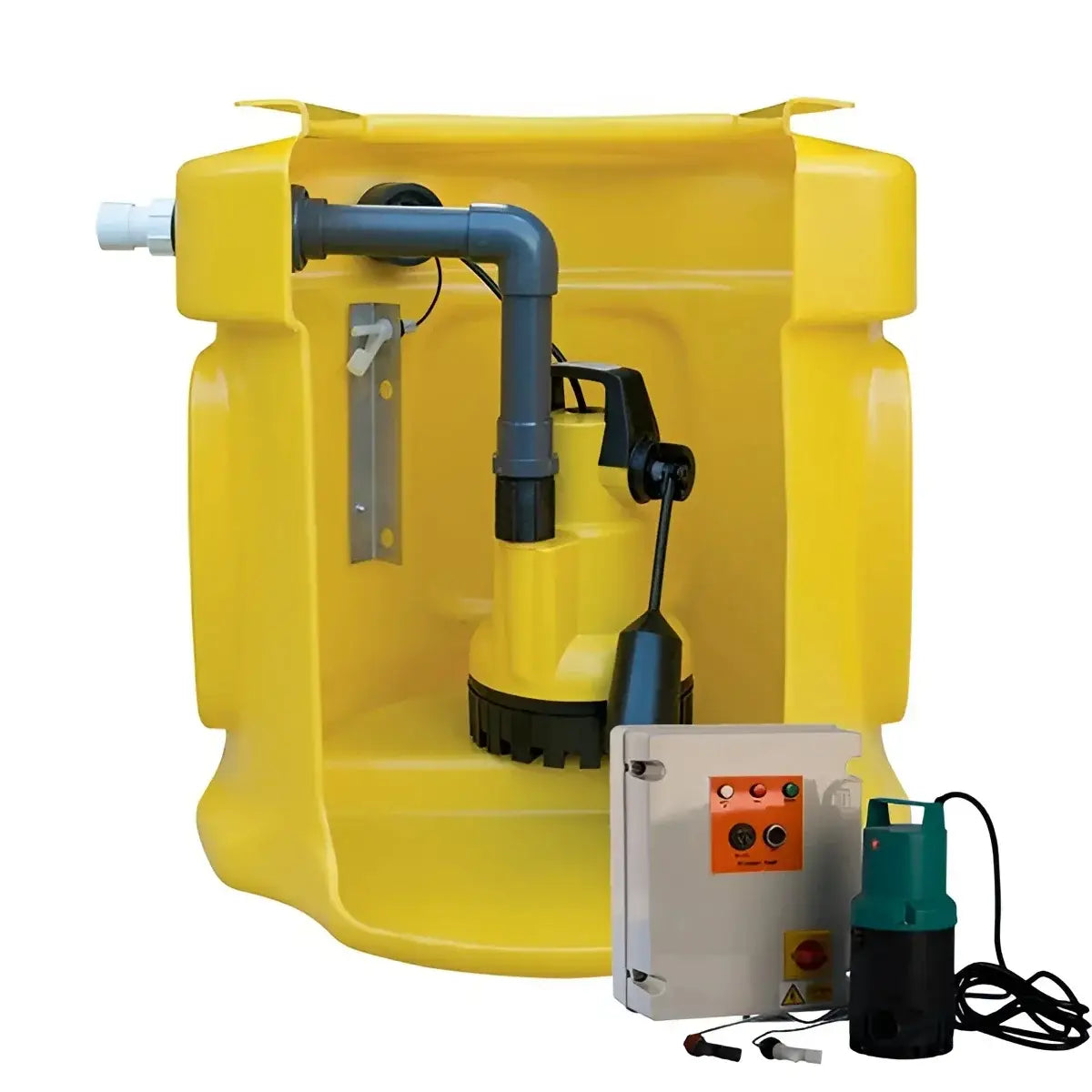

The SumpFlo BBPS Kit comprises of a polythylene tank, OPTIONAL locking access cover, (pedestrian duty, not suitable for roadways) and ONE powerful submersible pump. The system is very versatile, enabling the installer to located inlets to their specifications.

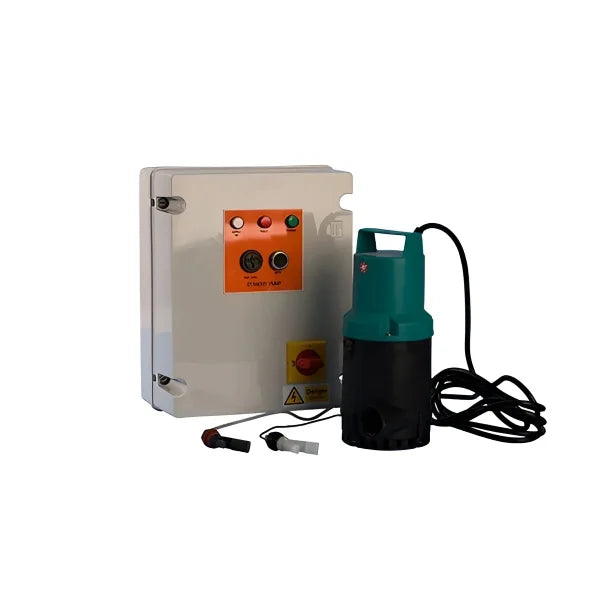

The system comes complete with a battery back-up pump system, which is designed especially for where the possibility of primary pump failure, through either a pump fault or loss of mains power, would be catastrophic. The system acts as a back-up that will alert the end user if the water rises above the normal operating level within the tank, and will activate a 24V back-up pump.
Available with both 301 and 303 pump.
Uses
The SumpFlo 301 Pump has a flow rate of 168 Litres per minute and a maximum vertical output of 6.8 metres
The SumpFlo 303 Pump has a flow rate of 240 Litres per minute and a maximum vertical output of 12.5 metres
N.B. When choosing pump sizes, remember that pumps generally lose 1 metre of vertical output for every added bend in the pipework.
Available with both single outlet and twin outlets.
- Easy to install

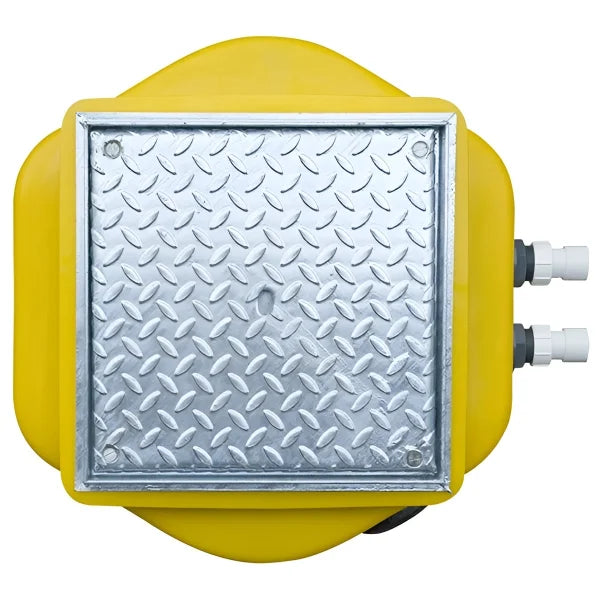

- Odour tight locking access cover
- Variable inlet positions
- Integral non-return valve preventing back flow
- Durable polythylene tank
- Pre-moulded flotation points preventing movement below ground

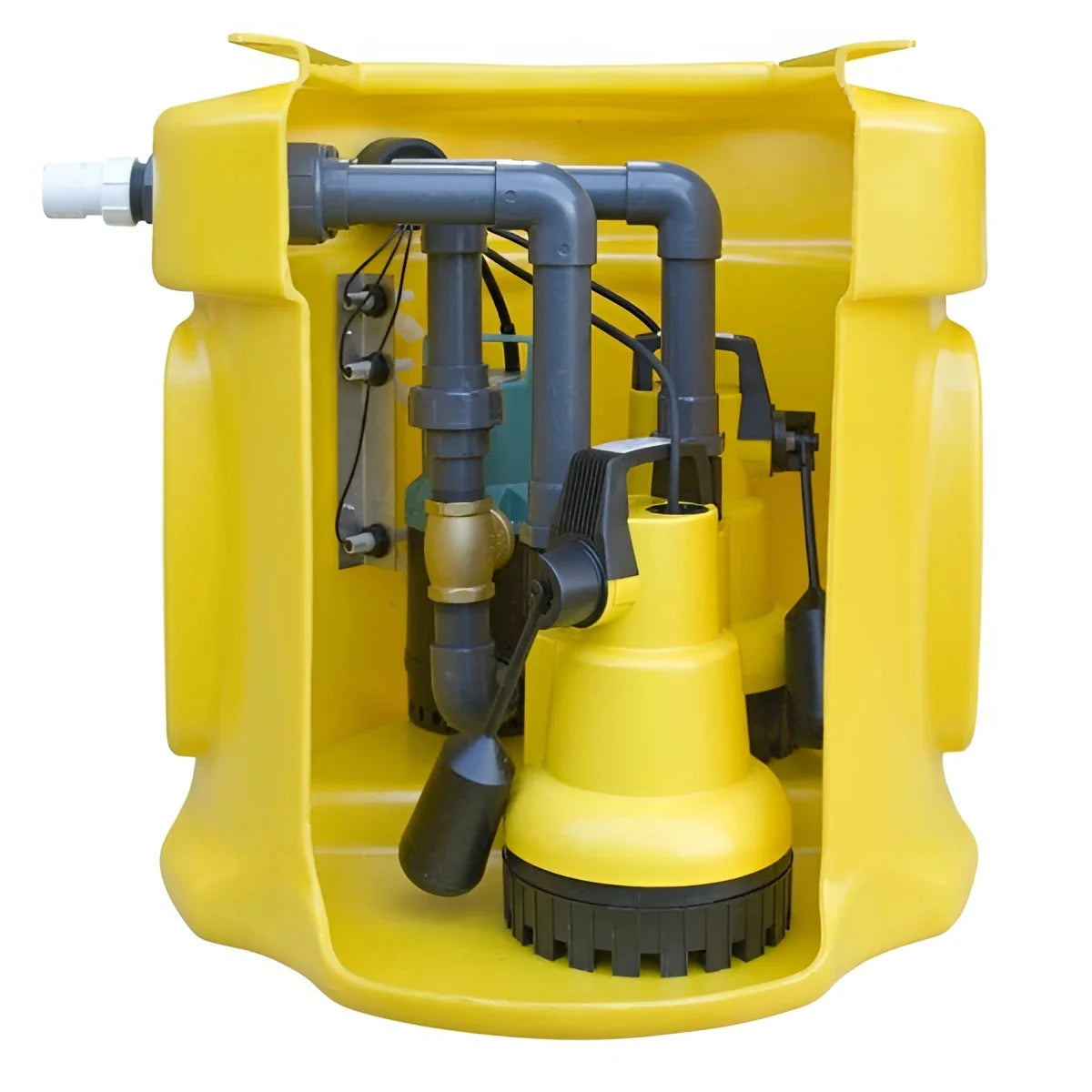

- Integral step for dual pump setup
- Powerful submersible pump
TDS
Guide
Wykamol SumpFlo User Guide 2008
Brochure
Video
Details
| Product Description | Sumpflo with 301 Pump, Battery Back-Up and Single Outlet | Sumpflo with 301 Pump, Battery Back-Up, Single Outlet and Access Cover | Sumpflo with 301 Pump, Battery Back-Up and Twin Outlet | Sumpflo with 301 Pump, Battery Back-Up, Twin Outlet and Access Cover | Sumpflo with 303 Pump, Battery Back-Up and Twin Outlet | Sumpflo with 303 Pump, Battery Back-Up, Twin Outlet and Access Cover |
| Product Code | SUMPFLOBBPS301SO | SUMPFLOBBPS301SO/AC | SUMPFLOBBPS301TO | SUMPFLOBBPS301TO/AC | SUMPFLOBBPS303TO | SUMPFLOBBPS303TO/AC |
| Packaging and Size | Kit contains Pipe Work, 1 x Battery Back-Up Pump, 1 x Sump Chamber, 1 x 301 Pump and Single Outlet | Kit contains Pipe Work, 1 x Battery Back-Up Pump, 1 x Sump Chamber, 1 x 301 Pump, Single Outlet and Metal Access Cover | Kit contains Pipe Work, 1 x Battery Back-Up Pump, 1 x Sump Chamber, 1 x 301 Pump and Twin Outlet | Kit contains Pipe Work, 1 x Battery Back-Up Pump, 1 x Sump Chamber, 1 x 301 Pump, Twin Outlet and Metal Access Cover | Kit contains Pipe Work, 1 x Battery Back-Up Pump, 1 x Sump Chamber, 1 x 303 Pump and Twin Outlet | Kit contains Pipe Work, 1 x Battery Back-Up Pump, 1 x Sump Chamber, 1 x 303 Pump, Twin Outlet and Metal Access Cover |
