Description

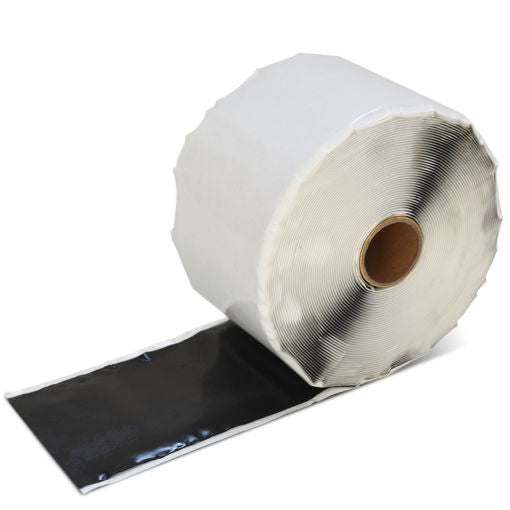

Visqueen 100mm Double Sided Butyl Tape 100mm x 15m
Visqueen 100mm Double Sided Butyl Tape is an extra-wide, double-sided pressure-sensitive butyl sealing tape designed for bonding membrane and DPC lap joints. The black butyl-based adhesive provides reliable bonding and helps resist water ingress and ground gases across a wide range of Visqueen membrane and damp proofing systems.
At 100mm wide and 15m long, the tape provides a generous bonding area to improve joint strength. It forms part of Visqueen's BBA and BDA Agrement certificated systems and is a third-party assessed jointing tape.
Key Benefits
- Extra-wide 100mm bonding tape
- Helps improve lap joint strength
- Provides resistance to water ingress and ground gases
- Double-sided pressure-sensitive butyl adhesive
- Suitable for bonding membrane and DPC lap joints
- Part of Visqueen BBA and BDA Agrement certificated systems
- Suitable for installation above 5°C
- In-service temperature range from -40°C to +90°C
- 100mm x 15m roll
Applications
Visqueen 100mm Double Sided Butyl Tape is used to bond lap joints in:
- Visqueen High Performance Urban Drainage Geomembrane
- Visqueen Polyethylene DPC
- Visqueen Pre Applied Membrane
- Visqueen Preformed Units
- Visqueen Ultimate Gas DPC
- Visqueen Ultimate GeoSeal
- Visqueen Ultimate HC Blok
- Visqueen Urban Drainage Geomembrane
- Visqueen Zedex CPT High Performance DPC
- Visqueen Zedex High Bond DPC
- Visqueen Zedex Housing Grade DPC
Technical Information
| Property | Specification |
|---|---|
| Product | Visqueen 100mm Double Sided Butyl Tape |
| Width | 100mm |
| Length | 15m |
| Colour | Black |
| Adhesive type | Butyl compound |
| Dynamic shear adhesion | 14 N/cm² |
| Dynamic tensile adhesion | 18 N/cm² |
| 180° peel adhesion | 11 N/cm² |
| Recommended installation temperature | Above 5°C |
| In-service temperature range | -40°C to +90°C |
Technical values are taken directly from the manufacturer's November 2025 datasheet.
Installation
Before application, ensure the surfaces to be bonded are clean, dry and fully supported. Avoid unsupported areas of jointing.
Apply the tape to the lap area and remove the release paper. For DPCs, overlap adjoining sheets by a minimum of 100mm; for membranes, use a minimum 150mm overlap. Apply pressure to the jointed area, for example with a roller, to ensure a full bond is achieved. Where specified, seal the membrane lap edge with the appropriate Visqueen single-sided tape.
The tape should be installed when temperatures are above 5°C. In cold weather, store the tape in a warm location before use.
Storage & Handling
Store rolls horizontally in their original packaging in a warm, dry and clean environment. Do not expose the tape to prolonged periods of ultraviolet light. In cold weather, move the tape to a warm location before installation.
FAQs
What is Visqueen 100mm Double Sided Butyl Tape used for?
It is used to bond lap joints in a range of Visqueen membranes, DPCs and associated waterproofing and gas protection products.
What size is the tape?
The tape is supplied as a 100mm wide x 15m long roll.
What type of adhesive does it use?
It uses a black butyl compound in a double-sided pressure-sensitive strip sealant.
What overlap is required?
Adjoining DPCs should overlap by a minimum of 100mm, while membranes should overlap by a minimum of 150mm.
What temperature can the tape be installed at?
Visqueen recommends installation when temperatures are above 5°C. Its stated in-service temperature range is -40°C to +90°C.
