Wykamol CM8 Geotextile Membrane 2m x 20m

What is Wykamol CM8 Geotextile Membrane?

Wykamol CM8 Geotextile Membrane is a heavy-duty cavity drainage membrane that provides superior protection against water ingress. It is designed for use on retaining walls, earth-covered structures, and external basement waterproofing systems.

Key Features & Benefits

✔ High-Strength Protection – Made from HDPE (High-Density Polyethylene), offering excellent durability and resistance to impact.
✔ Advanced Drainage System – The 8mm stud profile effectively channels water away from structures, preventing hydrostatic pressure buildup.
✔ Geotextile Layer – The integrated non-woven geotextile filter prevents soil particles from clogging the drainage system while allowing water to pass through.
✔ External Waterproofing Compatibility – Ideal for use with Wykamol HydroTank 1K or 2K coatings and other external waterproofing solutions.
✔ Flexible & Easy to Install – Lightweight, easy to cut, and conforms to irregular surfaces for seamless installation.
✔ Suitable for Various Applications – Perfect for retaining walls, basement walls, green roofs, podium decks, and other below-ground structures.

Application Process

Step 1: Surface Preparation

• Ensure the surface is clean, dry, and free of debris.
• If applying over a waterproofed surface, ensure the Wykamol HydroTank system or similar coating is fully cured.

Step 2: Membrane Installation

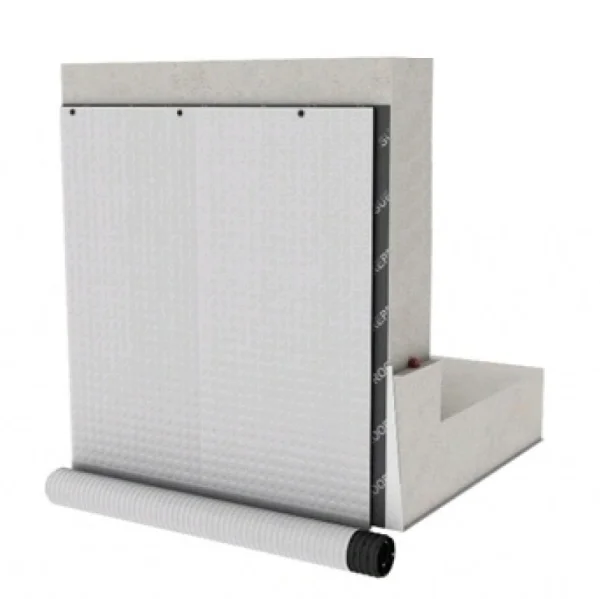

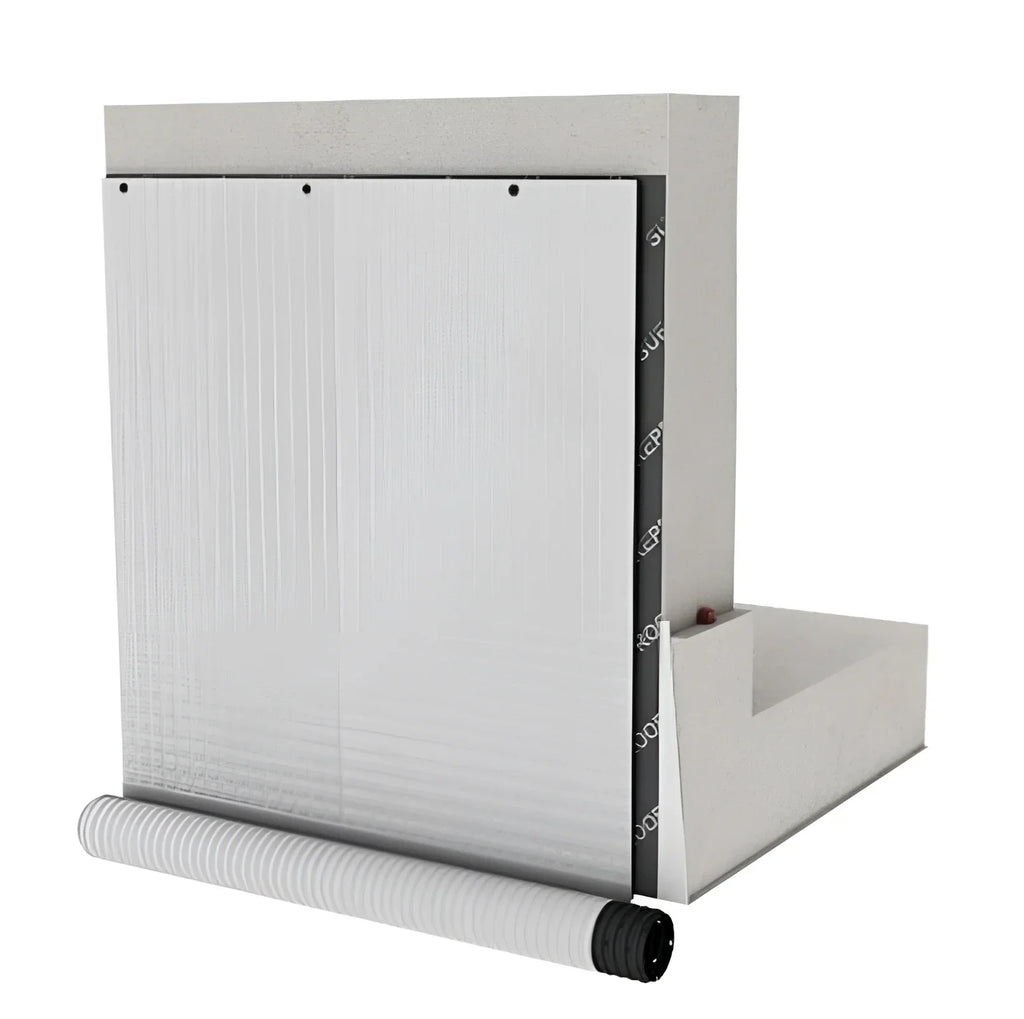

• Roll out the CM8 Geotextile Membrane against the external wall or structure.
• The geotextile side should face outward to allow water filtration while preventing soil ingress.
• Cut the membrane to fit around any penetrations or obstacles.

Step 3: Fixing the Membrane

• Secure the membrane using Wykamol Brick Plugs or other mechanical fixings, spacing them approximately 500mm apart.
• Ensure overlaps of at least 100mm between membrane sheets to maintain an effective drainage system.

Step 4: Drainage System Integration

• Install a perimeter drainage system, such as a land drain or Wykamol Drainage Channel, at the base of the wall to direct water away from the structure.
• Ensure the drainage system leads to a suitable discharge point, sump, or soakaway.

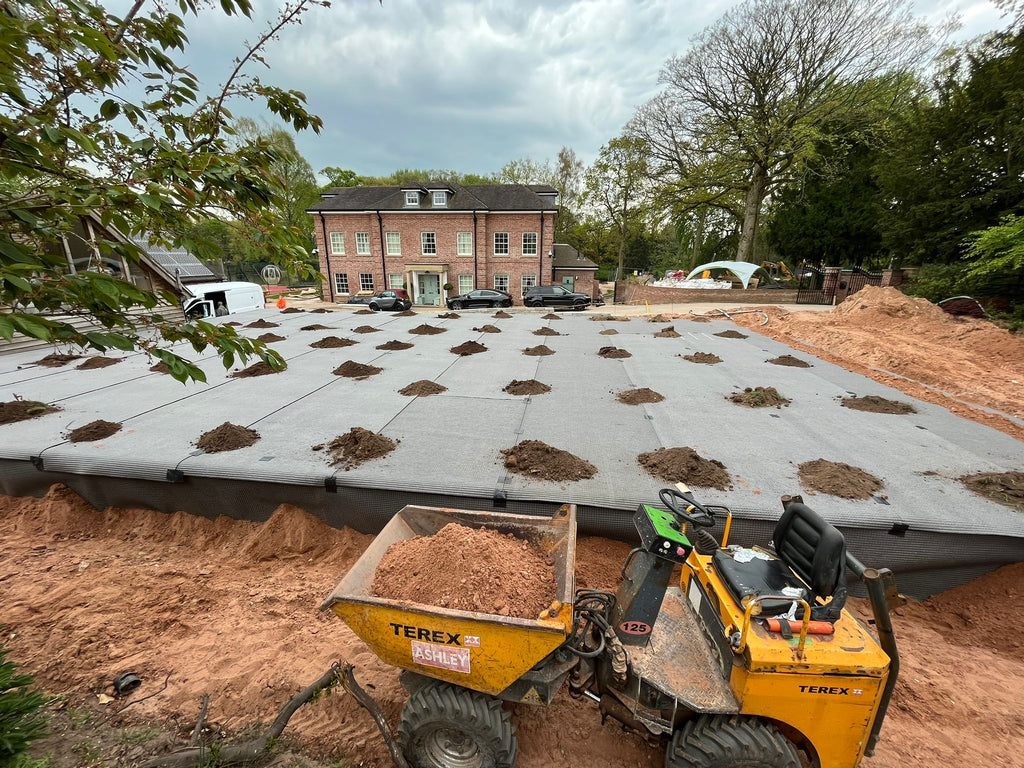

Step 5: Backfilling

• Carefully backfill with clean, coarse gravel or a free-draining material to enhance water movement.
• Avoid sharp objects or large stones that could damage the membrane.

Coverage & Specifications

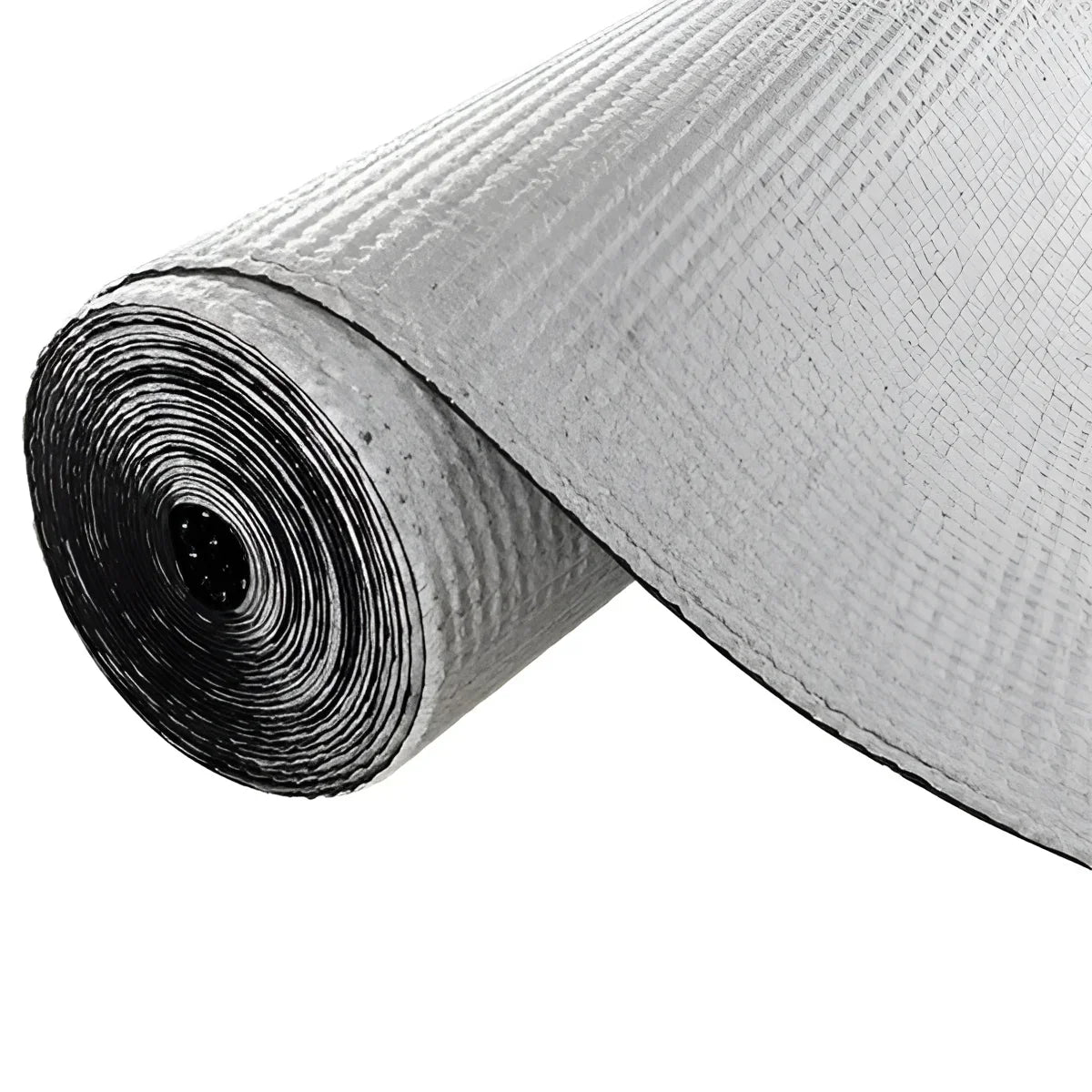

📌 Roll Size – 2.0m x 20m (40m² coverage per roll)
⚙️ Material – HDPE with a non-woven geotextile layer
⏳ Installation Time – Quick and efficient; can be installed in a single day for most applications

Next-Day Delivery Across the UK

Clever Shield offers fast, next-day delivery for Wykamol CM8 Geotextile Membrane throughout the UK, ensuring that your waterproofing projects stay on track.

💧 Protect your structures from water ingress with Wykamol CM8 Geotextile Membrane – Order today from Clever Shield!

Uses

• CM20 Geotextile is an ideal Radon Barrier.

• Excellent flow rate.

• UV Stabilised.

• Suitable for use with all construction types.

• Drains off the water before reaching the waterproof coating.

• Combined drainage and protection board.

• Easy handling and rapid installation.

• Rugged, durable construction with thermal insulation benefits.

• Filtration layers prevent silting-up.

• High compressive strength and drainage capacity.

• Allows back-filling with excavated earth.

• With stands stress and movement in the background.

Product Details

Downloads

• CM8-GEOTEXTILE-BWM06-TDS8.pdf
• CM20-GEOTEXTILE-CDM-BWM07-TDS7.pdf
• CM8-Geotextile-BBA-Cert-2022-05.pdf
• CM20-Geotextile-BBA-Cert-2022-05.pdf
• CM8GEOTEXT-DECLARATION-OF-PERFORMANCE-WPDOP073.pdf
• CM8GEOTEXT-DECLARATION-OF-CONFORMITY-WPDOC073.pdf
• CM20GEOTEXT-DECLARATION-OF-CONFORMITY-WPDOC083.pdf
• CM20GEOTEXT-DECLARATION-OF-PERFORMANCE-WPDOC083.pdf
