Description
Clever Shield CM8 Cavity Drain Mesh Membrane – BBA Certified Type C Waterproofing

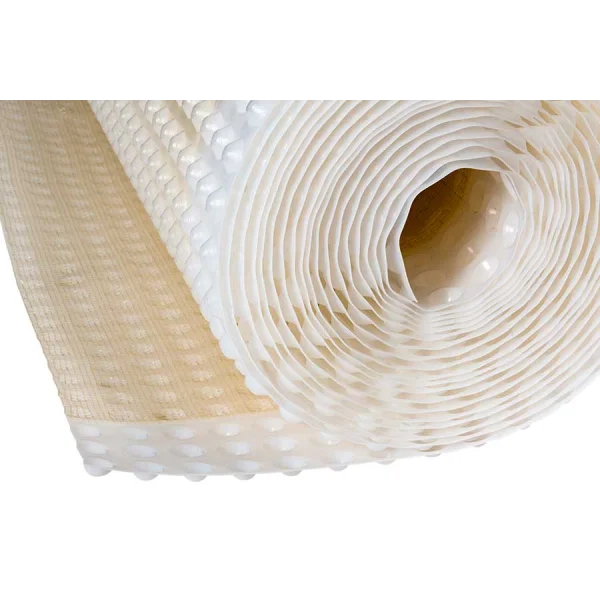

The Clever Shield CM8 Cavity Drain Mesh Membrane is a high-performance 8mm studded HDPE cavity drain membrane with a tough bonded mesh lathing designed for direct plastering and dry lining systems.
Engineered for Type C drained waterproofing protection, the membrane creates a drainage cavity between the structure and internal finish, allowing groundwater to be safely managed through perimeter drainage channels and sump pump systems.
The integrated mesh surface allows direct application of plaster, adhesive dabs and plasterboard, making this membrane ideal for basement waterproofing projects where a clean, finished wall surface is required.
The system delivers a Grade 3 or Grade 4 dry environment when installed as part of a full cavity drain waterproofing system in accordance with BS 8102 and NHBC Chapter 5.4.
Need help selecting the right waterproofing system?
📞 Speak to our technical team: 01268 472358
Key Features & Benefits
- BBA Certified Waterproofing System – Certified under BBA 18/5595 for structural waterproofing reliability.
- BS 8102 Compliant – Suitable for Type C cavity drain waterproofing systems.
- Integrated Mesh Lathing – Allows direct plastering, dot & dab plasterboard installation and adhesive finishes.
- Creates Habitable Dry Spaces – Converts damp basements and cellars into usable environments.
- Water & Contaminant Resistant – Protects against salts, roots and moisture ingress.
- Minimal Surface Preparation – Installs directly onto uneven masonry or concrete surfaces.
- Flexible & Easy to Cut – Easily trimmed and shaped around windows, doors and service penetrations.
- No Drying Time Required – Walls can be finished immediately after installation.
- Durable HDPE Construction – Resistant to extreme temperatures and long-term structural movement.
Product Specifications
| Product | Roll Size (m) | Weight (kg) | Coverage (m²) |
|---|---|---|---|
| CM8 Mesh Membrane | 2 x 10 | 16 | 20 |
| CM8 Mesh Membrane | 2 x 20 | 31 | 40 |
Typical Applications
- Basement waterproofing walls
- Cellar conversions
- Below-ground residential and commercial structures
- Damp wall remediation
- Waterproofing systems requiring direct plaster or dry lining
- Retrofit basement waterproofing projects
System Compatibility
The Clever Shield CM8 Mesh Membrane forms part of a complete Type C cavity drain waterproofing system and is typically installed with:
- Perimeter drainage channels
- Sump chambers and pump systems
- Membrane fixing plugs
- Sealing tapes and jointing systems
- Internal dry lining or plaster finishes
This integrated system provides long-term, maintainable waterproofing protection for basements and underground structures.
Technical Documentation
-
Method Statement
Method Statement CM8 Cavity Drain Mesh Membrane MSCM01 2018 08
BBA
BBA Certification Clever Shield CM8 Cavity Drain Mesh Membrane 18 5595
Performance
Declaration-of-Performance-CM8-Cavity-Drain-Mesh-Membrane-WPDOP04-2019-06
TDS
For full system specifications or installation guidance, contact our technical team.
📞 Technical Support: 01268 472358
Frequently Asked Questions
What is a cavity drain mesh membrane?
A cavity drain mesh membrane is a studded waterproof membrane with a bonded mesh surface that allows plaster or plasterboard to be applied directly onto the membrane.
Is the Clever Shield CM8 mesh membrane BBA certified?
Yes. The CM8 membrane system is BBA certified under certificate number 18/5595, confirming its suitability for structural waterproofing applications.
Can plaster be applied directly to the membrane?
Yes. The bonded mesh lathing allows plaster, render, adhesive dabs and plasterboard systems to be applied directly.
Does the wall need to be dry before installation?
No. Cavity drain membranes are designed to manage water behind the membrane, meaning they can be installed on damp substrates.
Is this suitable for basement conversions?
Yes. CM8 mesh membranes are commonly used in basement and cellar conversions to create dry, habitable internal environments.
