Wykamol CM8 Cavity Drain Mesh Membrane – Advanced Waterproofing Solution

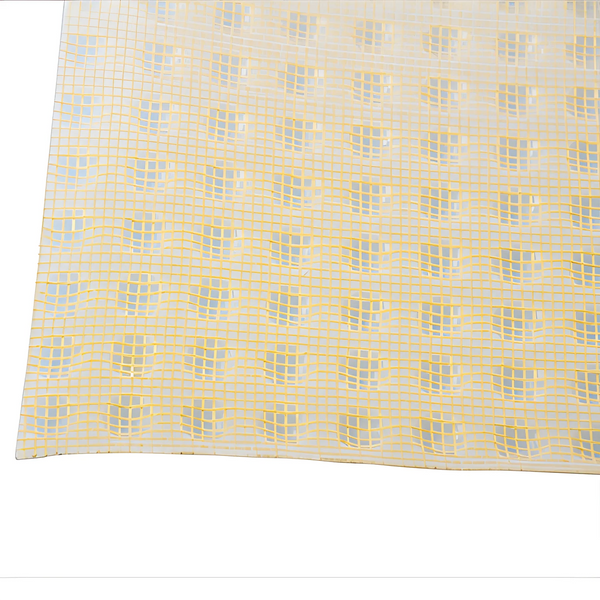

The Wykamol CM8 Mesh Membrane is an 8mm studded high-density polyethylene (HDPE) membrane with a tough mesh lathing welded to the front. Designed for direct application of plaster finishes, adhesive dabs, and plasterboards, it delivers a Grade 3 or 4 dry environment in compliance with BS8102:2009 and NHBC Chapter 5.4 standards.

Applications

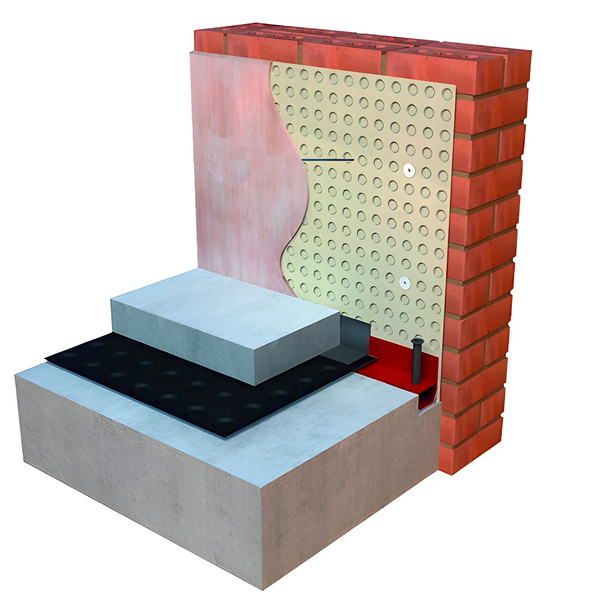

The CM8 Mesh Membrane is ideal for waterproofing in basements and below-ground structures, providing Type C drained protection in accordance with BS8102:2009. This system creates a dry, habitable space suitable for residential and commercial use.

In basements, CM8 Mesh must be used with a sump and pump system, unless passive drainage is available.
A full range of accessories, including pumped drainage systems and mechanical ventilation units, ensures a reliable and long-lasting waterproofing solution.

Key Benefits

✅ High-Performance Bonded Mesh – Strong HDPE construction enhances durability.
✅ Waterproof & Salt Inhibiting – Protects against moisture, contaminants, and root intrusion.
✅ Quick & Easy Installation – Requires minimal preparation of wall surfaces.
✅ Flexible & Adaptable – Easily cut and shaped around windows and doors.
✅ No Drying Time Needed – Surfaces can be decorated immediately after installation.
✅ Minimal Structural Impact – Causes little to no damage to existing structures.

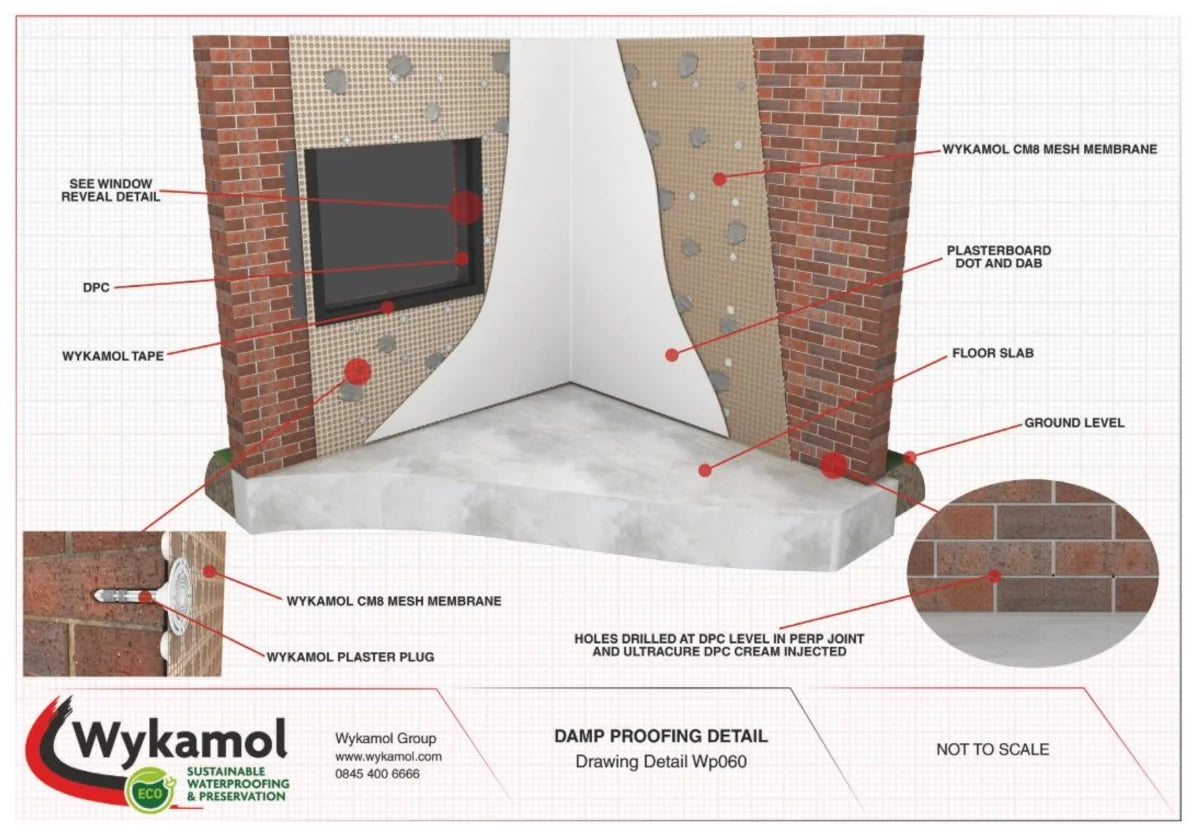

✅ Plaster Ready – Supports direct plastering or dot and dab application for plasterboard.

Video

Details

Product Description	CM8 Mesh Membrane	CM8 Mesh Membrane
Product Code	CM8MESH2X10	CM8MESH2X20
Packaging and Size	2 m x 10 m, 16 Kg	2 m x 20 m, 31 Kg
Coverage	20 m²	40 m²
Storage	Store in an upright position, under cover and away from high temperatures and open flames	Store in an upright position, under cover and away from high temperatures and open flames
Life Expectancy	The lifetime of the structure, when stored and installed in line with the datasheet recommendations.	The lifetime of the structure, when stored and installed in line with the datasheet recommendations.
