QuickDeck Car Park Decking System

Description

OS-10 certified Carpark system

VIP`s QuickDeck Car Park Decking system combines the speed, flexibility and strength of VIP`s proven high performance elastomeric linings with the safety of R10 and R12 skid resistance surfaces. This one application system provides a superior, longer lasting skid resistant surface not achievable using existing ”broadcasting” methods.
Direct incorporation of specially selected aggregates using an innovative application method ensures a consistent and durable finish is produced every time.

The spray applied, one process, one application method results in significant time savings over traditional car park decking systems. VIP`s QuickDeck Car Park Decking system provides exceptional tensile strength, elongation and crack bridging characteristics making it an ideal waterproofing membrane. Combined with VIP`s unique aggregate injection system customers can now waterproof their decks and provide a long lasting superior skid resistant surface all within a fraction of the time of traditional systems.

VIP`s QuickDeck Car Park Decking system combines the speed,

flexibility and strength of VIP`s proven high performance elastomeric linings with the safety of R10 and R12 skid resistance surfaces.

This one application system provides a superior, longer lasting skid resistant surface not achievbable using existing ”broadcasting” methods.

Direct incorporation of specially selected aggregates using an innovative application method ensures a consistent and durable finish is produced every time.

The spray applied, one process, one application method results in significant time savings over traditional car park decking systems. VIP`s QuickDeck Car Park Decking system provides exceptional tensile strength, elongation and crack bridging characteristics making it an ideal waterproofing membrane.

Combined with VIP`s unique aggregate injection system customer`s can now waterproof their decks and provide a long lasting superior skid resistant surface all within a fraction of the time of traditional systems.

Last but not least the system is OS 10 certified since 2016.

Features and benefits

• High anti-skid and anti-slip properties – fulfills R10 and R12 skid resistance rating according to DIN 51130

• One application process, rapid cure – massive time savings. 1 day applications possible

• Low consumption of aggregates, approx. 400 grams / m.

• No excess aggregate is produced saving clean up and aggregate recovery time


• • Very good adhesion to concrete

•

  Superior crack bridging abilities even at low temperatures (6.3mm at -20°C)

•

  High flexibility, high tensile strength, very high abrasion resistance

•

  Two aggregate grades - aggressive for ramps and high slip areas and standard for flat and walk way areas

•

  High resistance to oils, fuels, de-icing salts and a wide range of general chemicals

•

  Solvent and VOC free- Environmental friendly

•

  Ready for foot traffic in 30 minutes – Vehicular traffic in 6 hrs

Substrate Preparation Systems

• Concrete crack & spall repair materials
• Joint filling & repair materials
• Specialised concrete repair mortars

Features

• Self levelling and non sag versions

• VOC and solvent free

• Rapid curing even in sub zero temperatures

• Easy to apply cartridge systems
• Moisture tolerant

• High tensile and elongation strength

• High MPA cured strength


Self Levelling and Priming Systems

• Moisture tolerant primers
• Moisture barrier primers
• Submersion primers
• Elevated temperature primers

Features

• Excellent adhesion to concrete and steel
• Easy to use mixing ratios
• Solvent driven and solvent free options
• Suitable for high moisture applications
• Suitable for constant immersion
• Spray and roller applied solutions

Design and Protective Coating Systems

• Car Park Deck Areas
• Car Park ramps
• Loading Docks and Service ramps

Features

• Excellent color and gloss retention options
• Excellent abrasion resistance
• Excellent adhesion to concrete substrates
• Excellent chemical resistance compared to standard epoxies and urethanes
• Fast reactivity and cure times
• Very rapid return to service times
• Seamless application
• Remains flexible over a wide temperature range. -40 - + 120C
• Resistant to most chemicals, solvents, acids and caustics
• Good outdoor weathering - resistant to de-icing salts

Uses

• Loading Docks and Service ramps – Superior protection against impact, abrasion and water damage, with the added benefit of increased slip safety!

  VIP QuickDeck system is ideal for heavy traffic areas subject to high shear and abrasion loadings from fork lift trucks and pallet handling equipment.

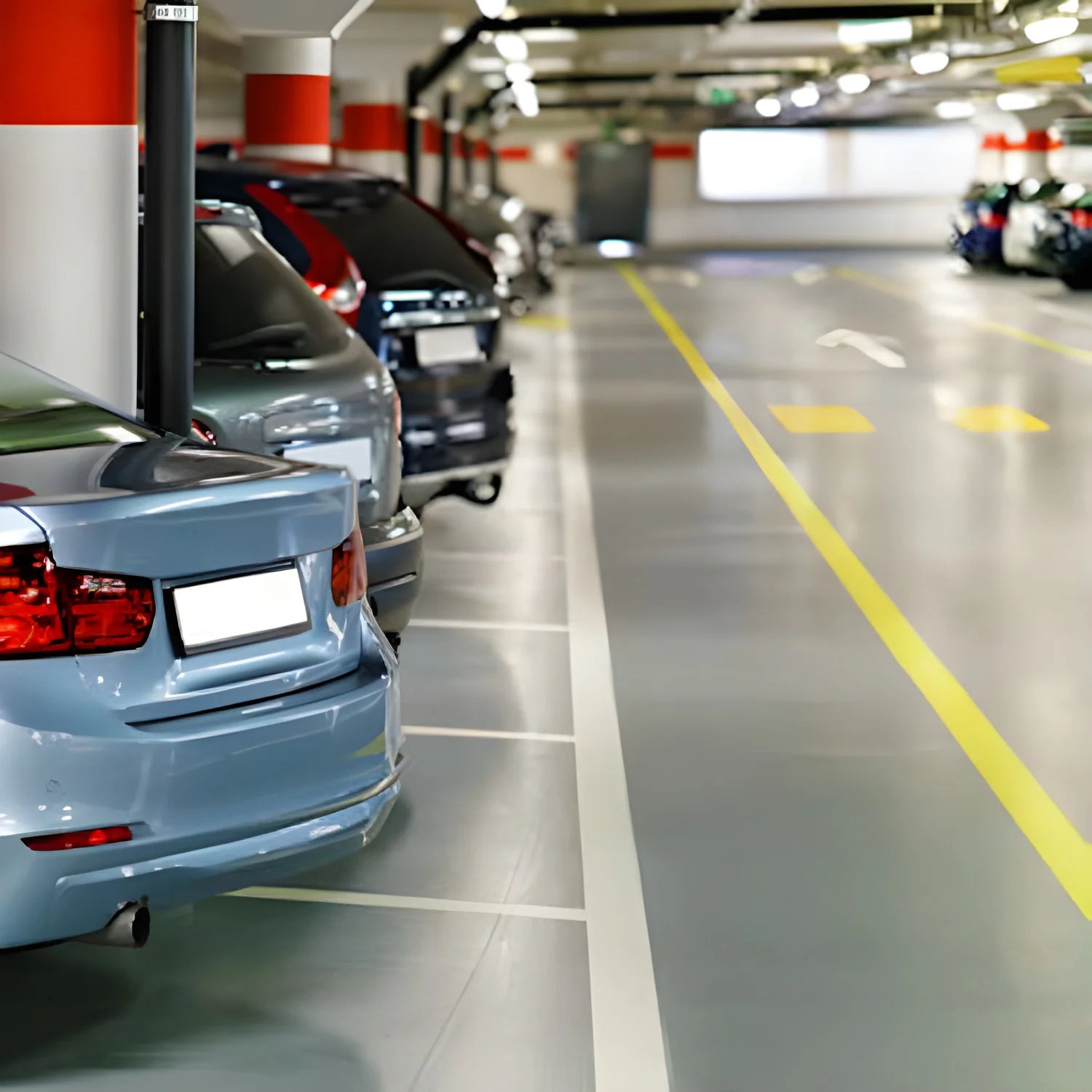

• Car Park Deck Areas –

  Protect, waterproof and increase safety in one rapid seamless application.

  Excellent crack bridging characteristics, high anti-skid characteristics and safe to use in full UV exposure.

• Car Park ramps –

  Aggressive aggregate option to reduce slippage risk on entrance, exit and turning ramps. Ideal for areas exposed to snow, ice, water and de-icing salts.

Design an Colour

All QuickDeck solutions are available in ten standard colors. Colors shown are approximate, actual color will vary with product grade and site conditions.

VIP`s non-crushable aggregates are incorporated into the VIP protective membrane during the spray applied application process using a unique injection system ensuring secure and consistent embedment of the aggregates for long lasting slip resistance. Please contact our technical department for further advice before application.

TDS

Elastocoat Datasheet
