Filoform Filoseal+

FiloSeal+ is designed for effectively sealing multiple cables or pipes within a single duct while also enabling easy re-entry to add or remove cables or pipes as needed.

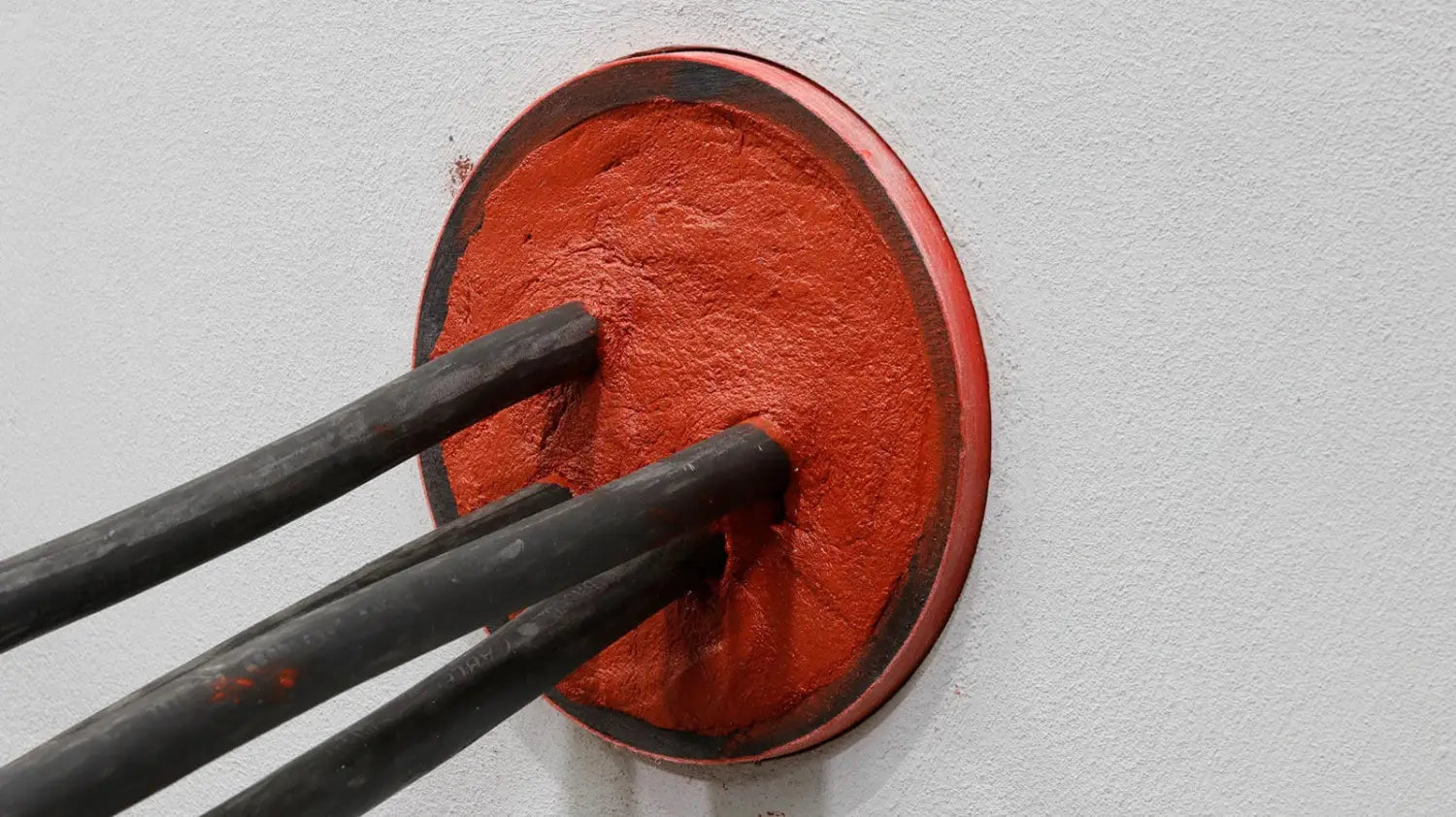

Duct sealing system FiloSeal+ is a solution for sealing cables and pipes in ducts or bore holes.

FiloSeal+ Kits are suitable for sealing several cables or pipes contained in one duct and also allows re-entry of the seal to add or remove cables or pipes as required.

When installing our duct sealing system FiloSeal+, you will protect valuables from damage which is caused by gas and water leaks.

• Gas and watertight up to 1,0 bar

The Filoform duct sealing system FiloSeal+ uses our MD+ sealant which is easily applied from a skeleton gun. The high quality, one component, flexible sealant “MD+” is based on a silicon compound that cures with air (Humidity).

After application and full curing the thixotropic MD+ forms a plastic elastomer mass with special qualities effectively sealing and bonding, while providing a high level of durability.

FiloSeal+ is very easy to apply regardless of the type of cable scenario in the cable ducts as it uses a uniquely shaped foam piece which positions neatly around the cables or pipes in the duct.

The unique design of the tri-flexible foam makes positioning and separation of the cables very simple while also providing a backing for the MD+ to be applied on.

This seal is easily installed in vertical scenarios while providing the added security of insuring no loss of components down the duct.

FiloSeal+ is suitable for sealing several cables or pipes contained in one duct and also allows re-entry of the seal to add or remove cables or pipes as required.

• Flexible, one component, adhesive and sealing compound in a cartridge - (310ml)

• High levels of Gas and Water tightness

• Excellent adhesion

• Shows Fire resistance properties

• Resistant against Water, Alkaline, Chemical agents

• Resistant to Hydrogen Sulphide / Methane and many other Gases (NedLab)

• Non corrosive

• Solvent free

• Shock absorbing

• Non toxic, neutral and almost odourless

• Also suitable for limiting the EX-zones during transitions (observe chemical resistance)

• WIMES Compliant, (3.02 clause 7.4.3.2, d & e)

• Suitable for any shaped duct / bore hole / opening

• Quick and easy installation

• A complete kit for one large duct or multiple smaller ducts

• Seals common materials (PVC, PILC)

• Suitable for renovations, can be installed retrospectively

• Over 25 years of operational experience


For further information on Filoform’s product range, or to speak to a member of our technical team please call 01268 472358.
