TECNOMESH & TECNOBAND Reinforcement Systems
For Polyurethane and Polyurea Liquid Waterproofing Systems
High-performance reinforcement solutions for Desmopol, Tecnocoat, and Ultraflex membranes.

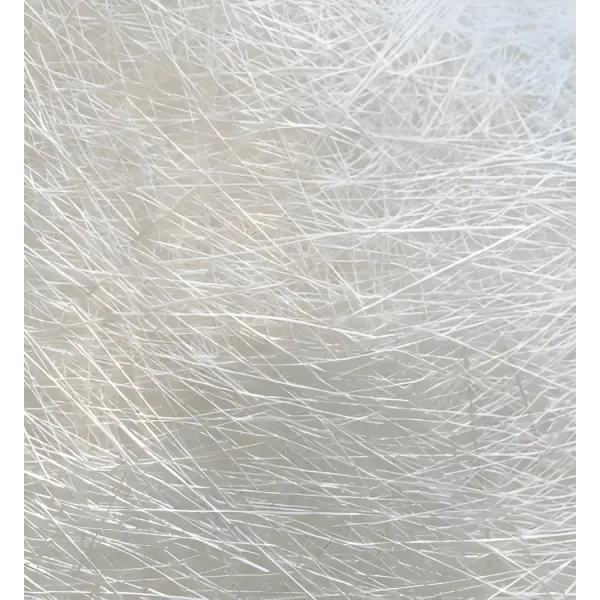

TECNOMESH 100 – Fibreglass Reinforcement Mesh
Description:
TECNOMESH 100 is a lightweight fibreglass mesh designed to strengthen and stabilize liquid-applied waterproofing membranes. It prevents cracking, enhances mechanical strength, and ensures a uniform finish over joints, transitions, and uneven substrates.
Key Features:
-
Reinforces polyurethane and polyurea liquid membranes.
-
Adds tensile strength and prevents cracking or pinholing.
-
Easy to embed within the first coat of liquid membrane.
-
Ideal for corners, upstands, drains, flashings, and weak zones.
-
Compatible with Desmopol and Tecnocoat systems.
Typical Applications:
-
Roof and deck waterproofing.
-
Cracks and transition reinforcement.
-
Detailing around penetrations, outlets, and joints.
-
Use on concrete, metal, and wood substrates.

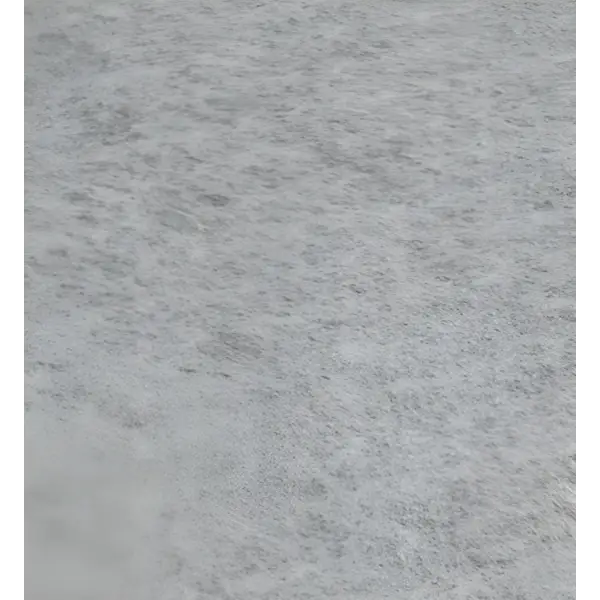

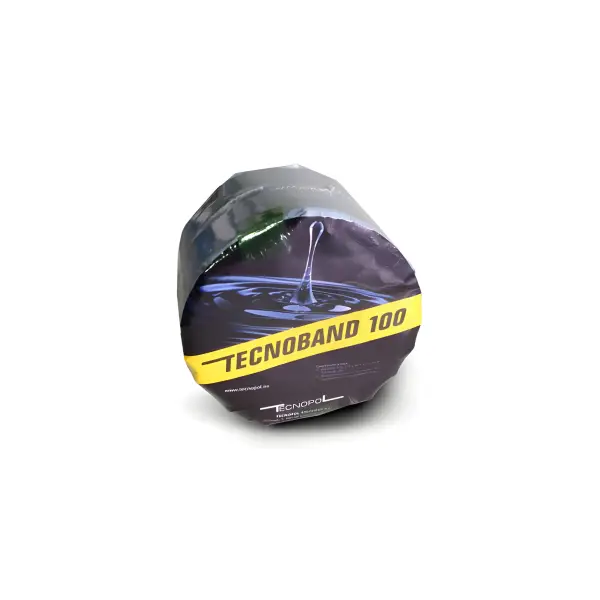

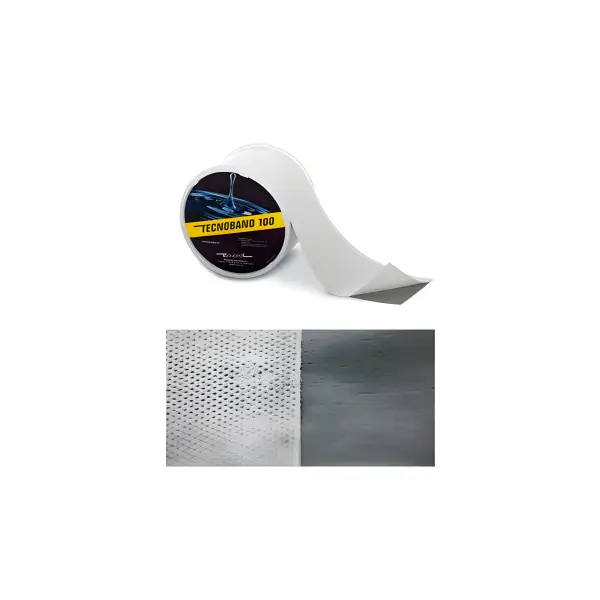

TECNOBAND 100 – Geotextile Reinforcement Band
Description:
TECNOBAND 100 is a deformable, self-adhesive band featuring a viscous-elastic core and non-woven mesh backing. It ensures watertight sealing and reinforcement for joints, overlaps, and complex details in polyurethane or polyurea waterproofing systems.
Key Features:
-
Flexible and transversely deformable for irregular surfaces.
-
Strong adhesion to liquid membranes for long-term waterproofing.
-
Non-woven geotextile backing improves bonding strength.
-
Easy to apply on both horizontal and vertical joints.
-
Suitable for sealing metal overlaps and concrete joints.
Typical Applications:
-
Joints and corners in Desmopol or Tecnocoat systems.
-
Reinforcement for metal roof overlaps.
-
Detail zones in balcony, terrace, or tank waterproofing.
TECNOBAND 200 – Structural Joint Sealing Band
Description:
TECNOBAND 200 is a high-elasticity technical rubber band engineered for large-movement structural joints. It delivers durable, watertight sealing even under positive or negative water pressure, making it ideal for high-stress structural areas.
Key Features:
-
Exceptional elongation and movement absorption.
-
Resists positive and negative water pressure.
-
Waterproofs expansion joints and movement zones.
-
Operates across wide temperature ranges.
-
Easy installation in both vertical and horizontal applications.
Typical Applications:
-
Expansion joints in concrete slabs and precast structures.
-
High-movement structural connections and foundations.
-
Drainage, tunnels, and below-grade waterproofing systems.
Why Choose Tecnopol Reinforcement Systems
-
Seamless compatibility with Tecnopol membranes (Desmopol, Tecnocoat, Ultraflex).
-
Improved durability and flexibility across all movement conditions.
-
Fast installation with superior adhesion and performance.
-
Tested reliability under demanding temperature and water-pressure conditions.
-
Universal adaptability for concrete, metal, masonry, and wood substrates.
Installation Notes
-
Ensure the surface is clean, dry, and free from dust, oil, or loose material.
-
Apply the first layer of liquid membrane and embed the TECNOMESH or TECNOBAND while still wet.
-
Roll out the material smoothly to eliminate air bubbles.
-
Apply a second coat of liquid membrane over the reinforcement.
-
For high-movement or structural joints, use TECNOBAND 200.
Technical Summary
| Product | Type | Function | Movement Capacity | Typical Uses |
|---|---|---|---|---|
| TECNOMESH 100 | Fibreglass mesh | Reinforcement of membranes | Low–medium | Detail zones, transitions |
| TECNOBAND 100 | Geotextile band | Joint sealing & overlap reinforcement | Medium | Concrete joints, metal overlaps |
| TECNOBAND 200 | Elastic rubber band | Structural joint waterproofing | High | Expansion joints, below-grade systems |
Expert Support
For project-specific advice or technical documentation, contact our technical team at 01268 472358 for guidance on correct product selection and installation
